MB-77HS patio doors

Sliding doors MB-77HS Lift and slide balcony door

Air tightness

class 4 | PN-EN 12207


class 9A | EN 12208

Thermal insulation UW

> 0,84 | W/(m2K)

Wind tightness

class C4 | EN 12210

Our projects

Patio and balcony doors with a low heat transfer coefficient

Aluprof offers MB-77HS patio doors with excellent thermal insulation of 0.84 W/(m2K), allowing you to meet the stringent requirements for energy-efficient buildings. Thanks to a diverse range of infills, thermal breaks and additional accessories, the door can achieve excellent thermal and acoustic parameters to ensure maximum comfort for the residents. It even conforms to the requirements of class C4 according to EN 12210, which guarantees that it will be able to withstand even very strong wind gusts without losing stability.

MB-77HS – aesthetic look and user comfort for years to come

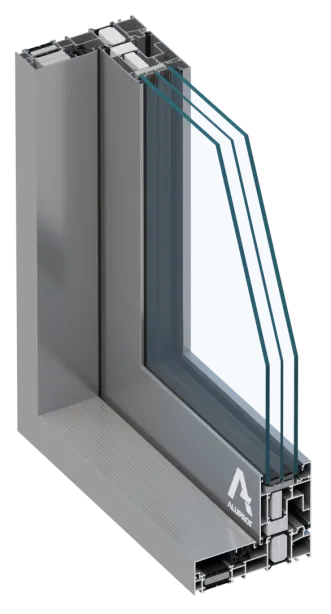

MB-77HS aluminium profiles are the perfect solution for people who appreciate comfort, safety and aesthetic qualities. Sliding balcony and patio doors not only have excellent technical specifications but are also functional and aesthetic. They are available in many different colours and can be easily matched with the style and feel of your home.

Sliding balcony doors have light and narrow profiles and large glazing to ensure excellent daylight admittance. They can also be provided with the “HS e-Power” concealed motor with a smart system that detects obstacles and a safe overload switch for enhanced user comfort.

The MB-77HS "Lift & Slide" door product is an ideal solution for connecting interior space rooms or conservatories with the outside balcony, terrace or garden area.

Providing both a smooth & silent slide action operation, it can bring the benefits of a beautiful day outside, into the living space. In addition, & by way of its design & operation, the MB-77HS is a great space saving opening & does not encroach the free space beyond the internal or external confines of the frame, without any compromise. Providing excellent weather tightness together with enhanced thermal performance, the MB-77HS complies with all of the requirements associated with this product type. Available in two different options, with regard to the level of thermal performance, the MB-77HS is further categorised as "ST" and "HI", standard or highly insulated. The design & arrangement of the system profiles enable luxurious openings of large dimensions, accommodating double & even triple glass unit compositions, which in conjunction with the constituent parts & innovative technical solutions, help achieve a high level of thermal & acoustic performance.

Due to the system properties, & rigorous performance proven through a stringent testing regime, the MB-77HS is ideally suited to many domestic & retail applications, providing a comfortable, safe working, cost effective & low maintenance solution for the end user.

Funcionality, asthetic values, durability:

  • the slender, durable profile makes it possible to build a low-threshold door with a leaf weight of up to 600 kg, a height of up to 3.24 m and a width of up to 3.3 m
  • a solution featuring a narrow mullion is available. The visible width of the profiles at the point where the door leaves meet is a mere 47.5 or 50 mm
  • 90- and 270-degree corner doors with a movable mullion can be produced
  • there is a wide range of infills, including single- or double-glazed units, as well as thermal breaks, additional accessories and insulating inserts, making it possible to achieve excellent thermal and acoustic performance
  • three types of glazing beads are available, the rectangular Standard, the rounded Prestige and the diamond-shaped Style
  • the closed shape of the glazing beads and the break-in prevention details make it possible to obtain increased burglary resistant properties without changing the door’s fundamental construction elements
  • the tailored shapes of the stop seals and glazing gaskets, together with the appropriate hardware, ensure high air- and watertightness
  • the profiles are designed to allow a great many of the manual and automatic locking devices available on the market to be installed
  • the door can be fitted with an HS-Master motor operated by either a button or a remote control
  • the Comfort Close mechanism available with the system provides user safety, even with large, heavy doors
  • the MB-77HS features a high level of compatibility with ALUPROF’s MB-86 system. This means that the door can be aesthetically combined with MB-86 windows. In addition, some of the same parts can be used to produce both types of structure
  • the possibility of using a concealed "HS e-Power" drive, equipped with an intelligent obstacle detection system and a load switch.
  • A profile compensating for the results of slab drift by up to 20 mm and making it possible to adjust the level of the upper frame is available for the door
  • the wide range of colours means that the door can be used freely in the composition of any interior or exterior décor
  • the frames are available in two variants, twin-track and triple-track
  • convenient solutions featuring a low threshold or a flat one, laid flush with the patio or balcony
