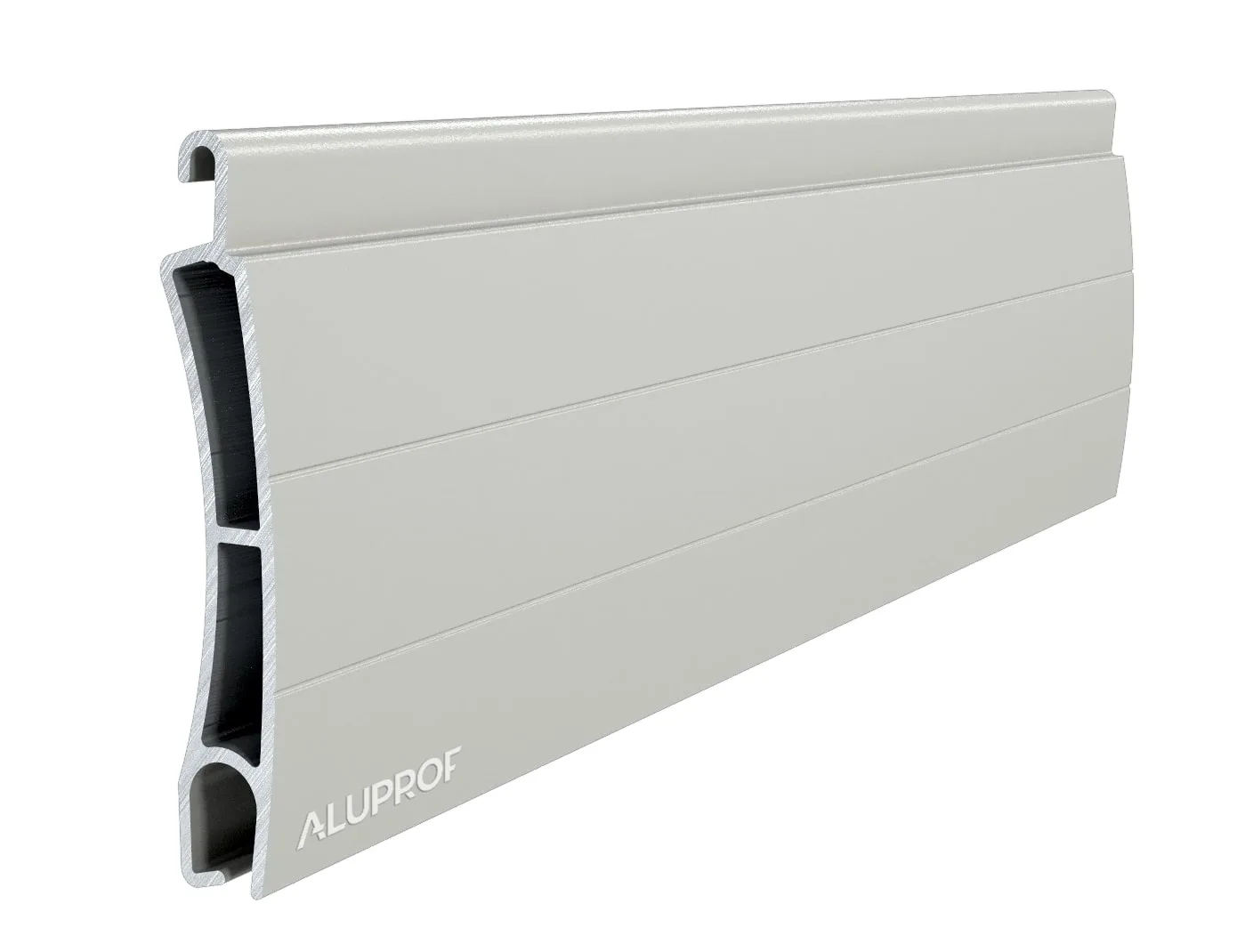

PE 41 - aluminium extruded roller shutter profile

The PE 41 profile is made of extruded aluminium and designed mainly for use in SAFETY PLUS anti-burglary roller shutters (burglary resistance class - RC2). It is very durable and has very good strength properties. Due to the high weight of the profile, the use of an electric drive is recommended.

The PE 41 is made of high-quality aluminium alloy coated with abrasion- and weather-resistant powder paint. The layer obtained by powder coating has a very high resistance to discolouring or colour fading. Aluminium profiles are environmentally friendly products.

Technical parameters:

• Weight 1m² [kg] - 7,4
• Profile thickness [mm] - 8, 5
• Number of slats on 1m height [pcs] - 24
• Maximum surface of the product [m²] - 8,5
• Profile height [mm] - 41
• Maximum width of the insect screen [mm] - 2000
