REFLEKSOL 120 for concealed installation

Maximum width

4.0 m

Maximum height

4.0 m

Electric drive

Yes

Manual drive

External application

Yes

Internal application

Fabric

Refleksol fabrics
dedicated to the system

Modular system

Yes

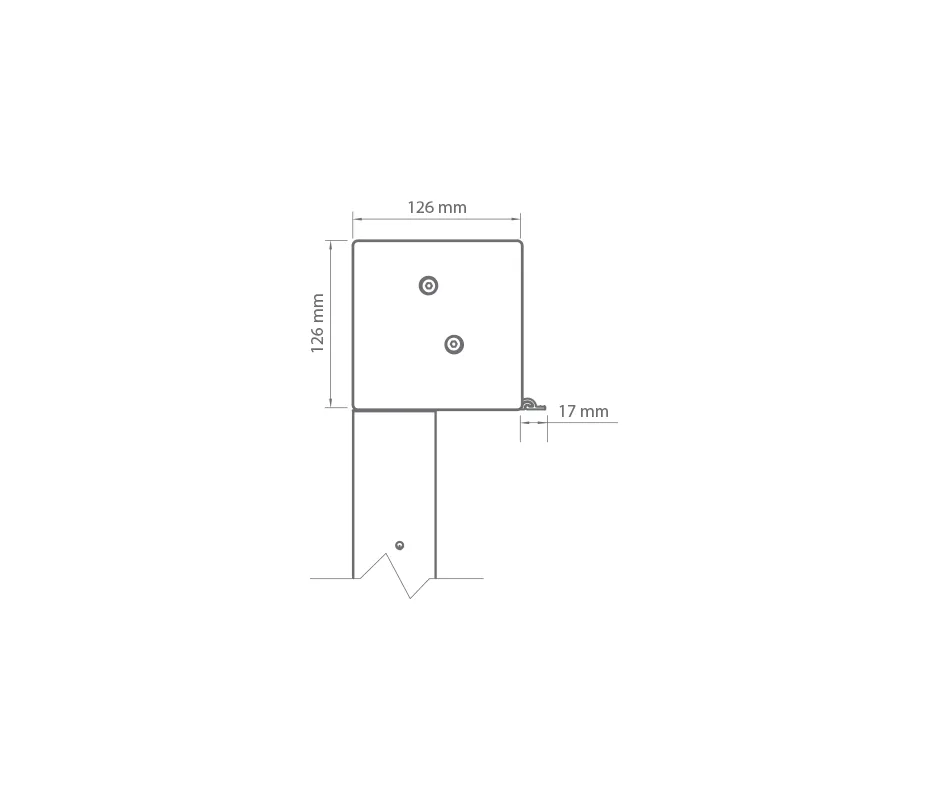

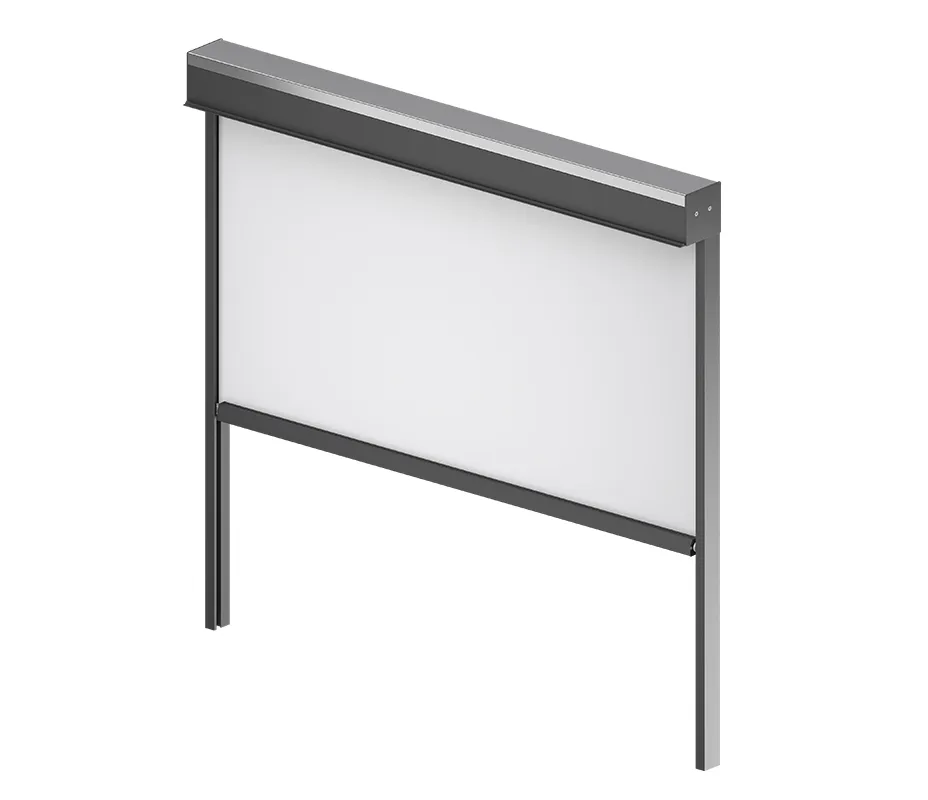

System R120 for concealed installation is an external cassette refleksol, in which the front part of the cassette is equipped with an extension that allows putting external plaster on it.

Both the guide rails and the rectangular cassette that protects the motor are made of extruded aluminium which can be painted in any colour from RAL palette. Refleksols are intended for buildings with insulated facades. The revision at the bottom of the cassette is easily accessible, which is important in case of installation as well as maintenance and service works. The maximum width of a single module is 4 m. This system can be optionally equipped with special anti-wind profiles, which increase the resistance of the fabric to wind gusts and prevent the deformation of the material under its influence.

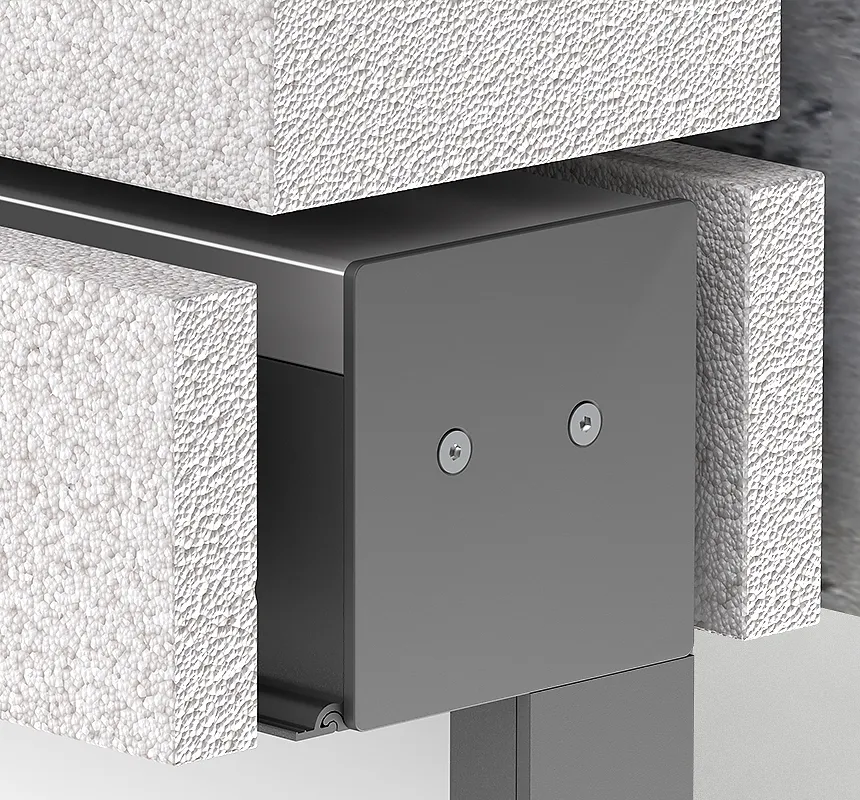

Concealed installation

Installation box of the concealed system is hidden under the plastering which means that after the Refleksol is rolled up, only the guide rails are visible.

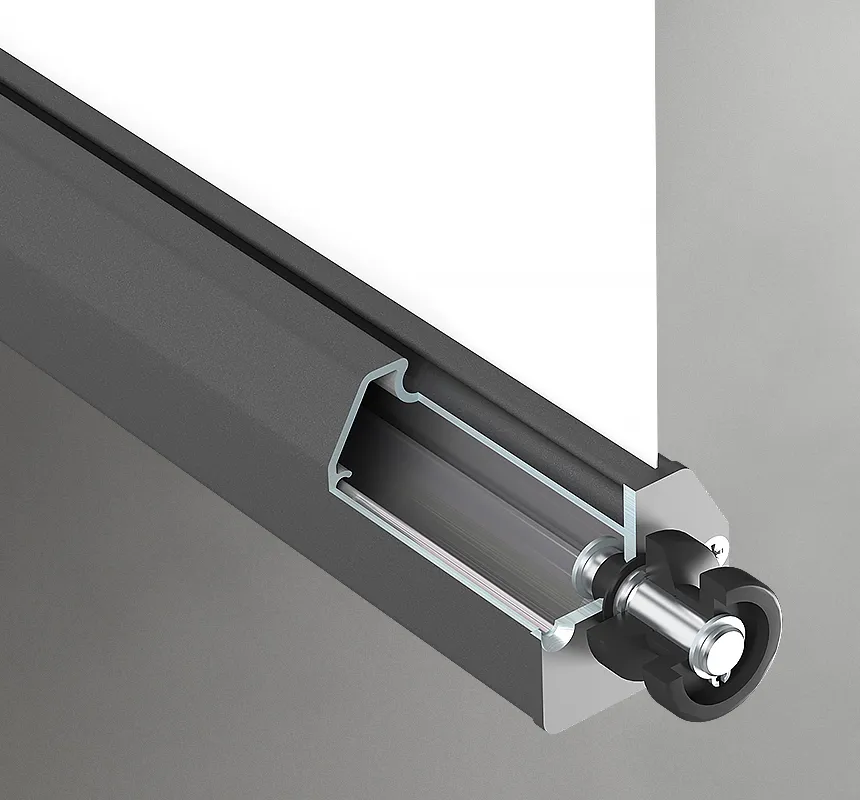

Freedom of choice

The bottom bar can be selected according to individual preferences and needs – thanks to this the system can be even more personalized.

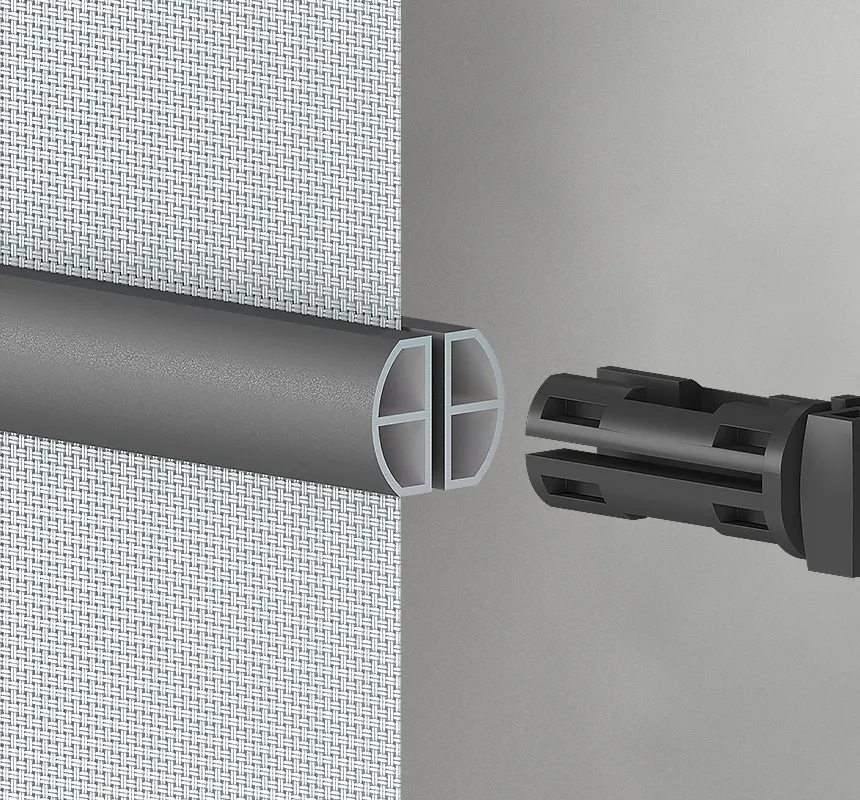

Additional anti-wind option

To increase the resistance of the system to wind it can be equipped with special anti-wind profiles that prevent the fabric from deforming due to strong wind.

Energy saving

When Refleksol is installed outside it prevents the rooms from heating up, which reduces the need for air conditioning.

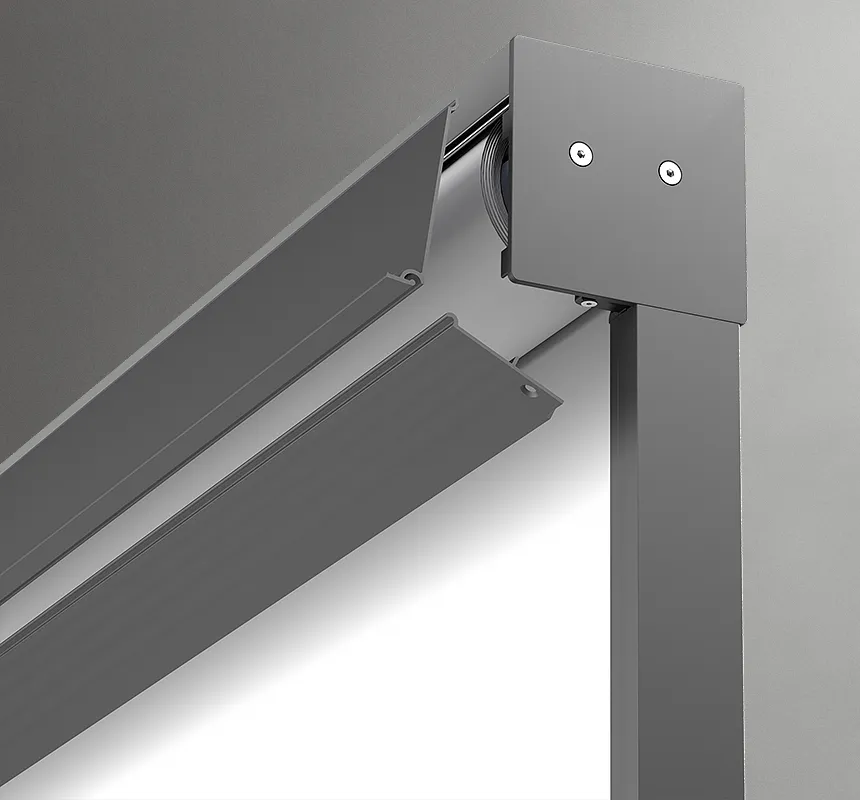

Easy access to the inside of the cassette

Two revision covers allow easy access to the inside of the cassette and installation of the system.

Polyscreen 550

A wide group of technical polyester fabrics coated with PVC, characterized by a variety of weaving patterns and properties (PS Luminous, PS 550, PS 350). This allows architects to select the right solution, increasing visual attractiveness of the building and to emphasize its individual character. High technical parameters provide optical and thermal comfort inside the room. An additional feature of the fabric is the ease to keep it clean.

White Polyscreen 550

White Grey Polyscreen 550

White Linen Polyscreen 550

White Pearl Polyscreen 550

Pearl Grey Polyscreen 550

Pearl Linen Polyscreen 550

Perl Sand Polyscreen 550

Ash Polyscreen 550

Soltis 92

Polyester technical fabric coated with PVC which is manufactured with patented technology Precontraint Ferrari®. The unique technology gives the fabric high stability and protects it against deformations even in large size systems.

Charcoal 2047 Soltis 92

Concrete 2167 Soltis 92

Deepblack 51176 Soltis 92

Sandy Beige 2135 Soltis 92

Silver 2048 Soltis 92

Silver Black 2045 Soltis 92

Silver White 2051 Soltis 92

Serge 1%

Collection of fabrics with an admixture of glass fibre coated with PVC. Fabrics from this group have a characteristic “Serge” weave, which guarantees their unusual dimensional stability. High fire resistance and very good technical parameters of the fabrics provide users with visual comfort in rooms, thus protecting against excessive heating of the interior.

Bronze Bronze Serge 1%

Charcoal_Charcoal 10010 Serge 1%

Grey Charcoal 01010 Serge 1%

Grey Grey 01001 Serge 1%

Grey White 01002 Serge 1%

Linen Linen Serge 1%

Pearl Grey 07007 Serge 1%

White White 02002 Serge 1%

Serge 600

Antracite Grey Serge 600

Charcoal Bronze Serge 600

Charcoal Charcoal 10010 Serge 600

Grey Charcoal 01010 Serge 600

Grey Grey 01001 Serge 600

Grey White 01002 Serge 600

Linen Linen Serge 600

Linen White Serge 600

Grey Sand Serge 600

Pure Black Serge 600

Sandstone Serge 600

Pearl Grey 07007 Serge 600

White White 02002 Serge 600

Sunworker

Smooth polyester fabric finished with PVC. The advantages of this fabric are: colour fastness, high resistance to weather conditions and easy to keep clean.

Champagne Swk711 Sunworker

Charcoal Swk392 Sunworker

Iron Swk653 Sunworker

White Swk005 Sunworker

Acrylic Fabrics

Acrylic fabrics guarantee the highest quality of the product, ensuring thermal comfort and protection against UV radiation. Made of 100% acrylic fibre dyed in chemical solution, they provide excellent protection against colour loss.

Blanco 2042, UV: 97%, Gtot: 18%

Tandem Blanco 8442, UV: 40%, Gtot: 18%

Natural 2929, UV: 97%, Gtot: 18%

Marfil 2143, UV: 97%, Gtot: 16%

Siroco 2226, UV: 98%, Gtot: 12%

Vanilla 2687, UV: 97%, Gtot: 17%

Amber Beige 0814, UV: 99%, Gtot: 15.66%

Beige 2038, UV: 99%, Gtot:11%

Integral 2838, UV: 99%, Gtot: 8%

Berna 2041, UV: 97%, Gtot: 16%

Olive Green 0007

Graphite Melange 0107

Alabaster 0151

Lagoon 1063

Marmol 1070

Rain 1073

Shell 1469

Tweed Gris Claro 3581N

Titane Pigue 6088

Platinum Pigue U407

Etain Link U786

Celeste Link U795

Magma Link U808

Avena 2296, UV: 98%, Gtot: 11%

Lin Melange 8904, UV: 95%, Gtot: 11%

Tweed Brown 0403, UV: 99%, Gtot: 6.82%

Mineral 2831, UV: 99%, Gtot: 7%

Vision 2250, UV: 99%, Gtot: 7%

Chaume Pigue u235, UV: 100%, Gtot: 9%

Cafe 2316, UV: 99%, Gtot: 5%

Marble 0923, UV: 99%, Gtot: 12.8%

Tweed Latte 7926, UV: 98%, Gtot: 15%

Snowflake 3463, UV: 95%, Gtot: 22%

Tweed Argent 0794, UV: 98%, Gtot: 19%

Dark Linen 6727, UV: 98%, Gtot: 18%

Silver White 0364, UV: 99%, Gtot: 7.67%

Silver Melange 0028, UV: 99%, Gtot: 7.36%

Tandem Piedra 8445, UV: 80%, Gtot: 7%

Iron 0937, UV: 99%, Gtot: 6.57%

Tweed Rock 7151, UV: 98%, Gtot: 11%

Silver 2821, UV: 97%, Gtot: 13%

Silver Grey U190, UV: 90%, Gtot: 15%

Zip Grey 1597, UV: 98%, Gtot: 13%

Pietra Beige 9415, UV: 98%, Gtot: 8%

Perla 2979, UV: 97%, Gtot: 8%

Ash 0638, UV: 99%, Gtot: 5.05%

Antracita 8488, UV: 99%, Gtot: 6%

Tandem Grafito 8446, UV: 80%, Gtot: 6%

Ebony Tweed 7324, UV: 98%, Gtot: 10%

Negro 2170, UV: 99%, Gtot: 5%

Graphite Zip 1524, UV: 98%, Gtot: 12%

Basalt 8203, UV: 100%, Gtot: 5%

Flanelle U104, UV: 100%, Gtot: 5%

Charcoal Tweed 0402, UV: 99%, Gtot: 5%

Stitch Andesite 0512, UV: 98%, Gtot: 8%

Stitch Calcite 0505, UV: 98%, Gtot: 9%

Stitch Ruby 0507, UV: 98%, Gtot: 9%

White Linen 8615, UV: 95%, Gtot: 18%

Platinum 0715, UV: 90%, Gtot: 12%

Breeze 2777, UV: 99%, Gtot: 6%

Marine 2145, UV: 99%, Gtot: 5%

Azul 2018, UV: 99%, Gtot: 7%

Orange 2050, UV: 99%, Gtot: 13%

Bright Red 2211, UV: 99%, Gtot: 10%

Rioja 2210, UV: 99%, Gtot: 8%

Carmin Pigue U411, UV: 100%, Gtot: 10%

Switch Rouge * U390, UV: 100%, Gtot: 8%

Marseille Flame * 8854, UV: 100%, Gtot: 11%

Amarillo 2013, UV: 99%, Gtot: 15%

Curry U105, UV: 100%, Gtot: 12%

Ocre 2180, UV: 99%, Gtot: 13%

Jade 0396, UV: 99%, Gtot: 8.12%

Verde Botella 2245, UV: 99%, Gtot: 6%

Automation for comfort during work and leisure

The use of full automatic control in sunshades allows you to control the level of solar energy penetrating the interior of the building. In addition, they provide additional protection for the shade in the event of adverse weather conditions. In order to increase energy efficiency and control comfort, it is possible to integrate them with lighting, air conditioning and heating systems and to visualise the current position of the sunshades. Modern automation systems are also characterised by simple installation, easy configuration and reconfiguration

Control

Depending on your needs, the blinds can be controlled using wall switches, remote controls or via the Internet thanks to an application with a convenient interface for use on a computer, tablet or smartphone.

Sensors

The use of wind, sun or temperature sensors in smart buildings allows for automatic control of sunshades depending on changing weather conditions.

Drive

The use of electric drives in sunshades provides comfort of use and the possibility of programming automatic rolling and unrolling of the systems.
