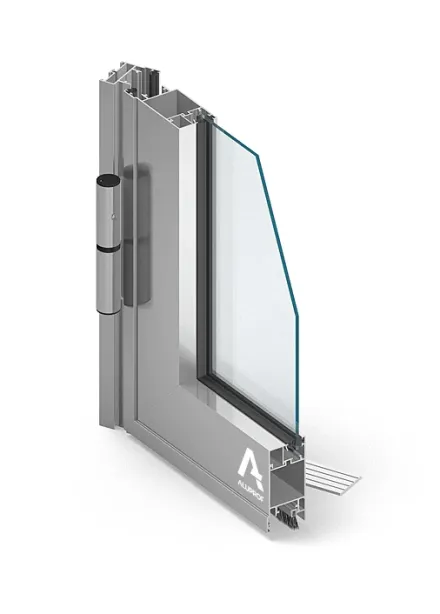

MB-45S

The MB-45S system is intended for constructing doors equipped with mortise hardware and the partition walls equipped with door. It is a part of the MB-45 window/door system.

The structural depth of the sections is equal to 45 mm. The glass panels and other in-fill materials are mounted with the help of glazing beads and gaskets. The door structure allows application of the sets of glass panels of the thickness equal from 2 mm to 26 mm.

The products based on the MB-45S system are aesthetic and have good functional qualities. They are characterized by a very simple and fast prefabrication, thanks to elimination of the majority of time-consuming mechanical working processes. Owing to the applied special grooves, the profile structure allows mounting various types of hinges, fasteners and bolts, without much work. The profile joining is performed with minimum work, using the aluminum joints and additional accessories, like in the case of MB-45. The exterior and interior glazing gaskets are mounted in a continuous manner, without cutting in the corners, by joining ends of the gaskets at half length of the upper door frame crossbar. Such a way of glazing guarantees good tightness against water and shortens the mounting time significantly. The whole mounting process allows offering structures that are economic and fulfill high functional requirements at the same time.

The external and internal glass gaskets are mounted in a continuous manner, without cutting at corners, and their ends are joined at mid length of the upper crosspiece of the door frame. This method of glazing ensures good water and air tightness and significantly reduces the assembly time. The entire product assembly process allows economical constructions to be offered that simultaneously meet high functional requirements.

The MB-45S system structures of interior doors and partition wall segments have been tested by the Building Research Institute in Warsaw with very satisfactory results.
