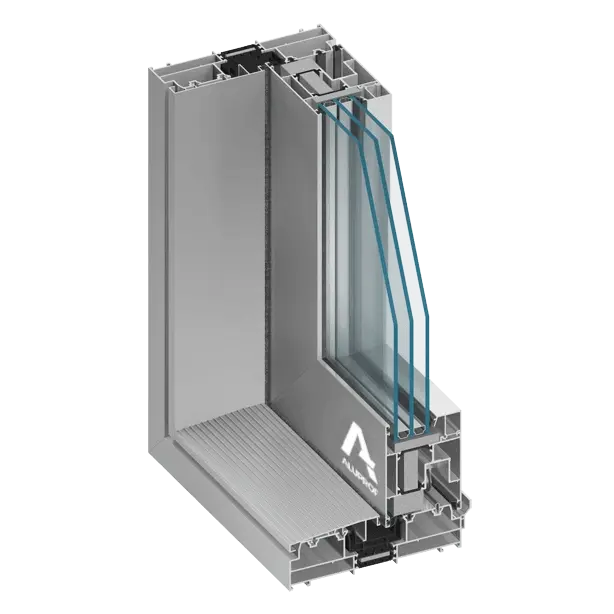

MB-77HSB Lift-and-slide balcony door

The MB-77HSB system was designed bearing in mind mainly the needs of the Belgian market. It is based on a proven, extended and valued system of lift-and-slide balcony doors [MB-77HS] (https://aluprof.com/producenci/oferta/systemy-okienno-drzwiowe/mb-77hs-drzwi-balkonowe-podnoszono-przesuwne#wizualizacja).

Appropriate insulation of the structure is ensured by profiled thermal breaks and additional insulating elements inside the aluminum sections. An important feature of the internal construction of balcony doors is a 2 mm ventilation gap between the glass packet and the insulating insert operating at the edge of the glass along its entire circumference.

The profile design allows to produce exclusive doors with large dimensions, filled with single or double glazing, and the materials and technical solutions used help to achieve a high degree of thermal and acoustic protection. Thanks to its properties, this system is ideal for single-family houses as well as comfortable apartments or hotels. The MB-77HSB system holds an ATG certificate issued by the Belgian Research Institute UBAtc.

FUNCTIONALITY AND AESTHETICS.

• durable and slender profiles allow constructing low-threshold doors with the leaf weight up to 300 kg, height up to 3.2 m, and width up to 3.3 m
• the frames are available in three versions: as 1-, 2- or 3-rail
• Convenient solutions with low threshold
• wide range of infills, including the use of single or double chamber sets, thermal breaks and additional accessories and insulating inserts allow to achieve very good thermal and acoustic construction parameters
• glazing beads in three appearance versions: Standard (rectangular), Prestige (rounded) and Style (shaped)
• closed shape of glazing beads and anti-burglary details to provide increased anti-burglary properties without changing important structural elements of the door
• special shapes of cover gaskets and glazing beads as well as appropriate hardware ensure high tightness of doors
• the profiles are suitable for mounting many types of manual and automatic locking hardware commercially available
• fixed quarters can be made with glass mounted directly in the frame (aesthetic and economical solution)
• the possibility to drive the door with automatic "HS-Master" controlled by a button or a remote control
• security of even large and heavy doors thanks to the "HS Speed Limiter" mechanism available in the system
• wide range of colors allowing to arrange the door in any and all surrounding decorations
