MB-82HS Lift and slide patio door
Airtightness
class 4 | PN-EN 12207
Watertightness
from 750 Pa to 1800 Pa | EN 12208
Wind load resistance
from 1200 Pa to 2400 Pa | EN 12210
Thermal insulation UW
from 0.60 | W/(m2K)
Experience unmatched performance and style with the MB-82HS, a patio door designed for modern living spaces. This door blends indoor comfort with outdoor accessibility seamlessly, making it an ideal choice for contemporary homes. It stands out for its high aesthetic appeal, ease of fabrication, and outstanding performance characteristics. These include superior thermal insulation, top-notch airtightness, and excellent watertightness. The MB-82HS can accommodate large dimensions, offering both manual and automatic opening options. Its specifications make it suitable for energy-efficient building projects, featuring innovative design elements such as an embedded 'zero' threshold, a linear drainage system, sleek mullions, and the absence of masking strips on the vertical frames. With the MB-82HS, visual elegance meets practicality and comfort.
Features and design highlights

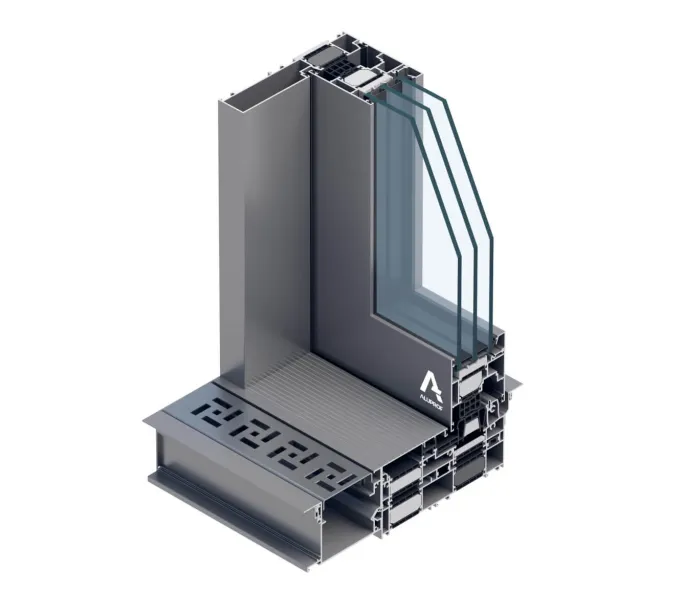

- profile depth: 82 mm for the door leaf, 186 mm for the frame
- three thermal variants: the ST, SI and SI+
- glazing options: 18-66 mm for the door leaf, 36-65 mm for the fixed panels
- maximum leaf size: 3.24 m x 3.3 m
- maximum leaf weight: 600 kg
- a wide selection of hardware
- mullion options: the SI+ mullion enhances thermal performance, and a slim mullion offers superior aesthetics
- the glazing of the panels from the outside makes it possible to install large, heavy glass panes
- a compensating profile is available for preventing ceiling deflection from affecting the functioning of the door
- the custom-designed profiles make the door easy to combine with other ALUPROF systems, such as the MB-79N, MB-86N and MB-104 Passive
- easier prefabrication, thanks to the simplified drainage model, straight-cut and bolted frame and glazing on the outside of the fixed panels
- a comprehensive system solution for installation; an EPS structural base, mounting brackets, a compensating profile and linear drainage
