MB-86US ST, SI The invisible window sash
Thermal insulation
from 0.86 | W/(m2K)
Airtightness
class 4 | PN-EN 12207:2001
Watertightness
class E1350 | PN-EN 12208:2001
Windtightness
class C5/B5 | PN-EN 12210:2001
The MB-86US system is used to make different types of windows, balcony doors, porches, store windows and spatial structures, which characterize very good thermal and acoustic insulation and high air and water tightness.

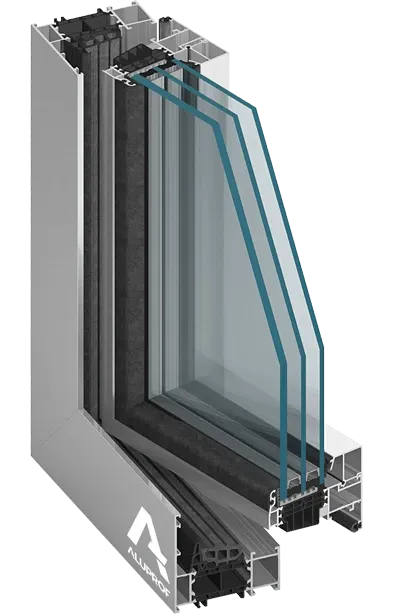

The window features that a vent profile is hidden behind the profile of the window outer frame, and surfaces of mounted glass panels in active and fixed profiles are on one plain. Thanks to that external opening and fixed panels look identical.
The depth of window section is 77 mm (jamb), 80.8 mm (leaf). The width of external window frame is little what makes glass fitting and the quantity of falling through lighting maximum increased. A design seems to be slender and light. The value of eventual glass thickness: in the window outer frame – from 7 up to 52 mm, in the casement – from 15 to 60 mm. Such a wide range of glazing allows to mount all found at the market types of double or triple-glazed units, sound proof/acoustic or anti-burglar glass.
In terms of technical properties the MB-86US system meet all requirements concerning energy conservation and environmental protection. The structure of the profile similarly to basic MB-86 system has three variants depending on requirements of thermal insularity: MB-86US ST, MB-86US SI and MB-86US AERO with the use of modern insulation from aerogel.
The system gives great abilities in created structures: maximal dimensions of casements exceed standard values for this type of construction. Hs max=2,5 m, Ls max=1,6m. Maximum loaf weight is 150 kg.
Technical parameters:
- Air infiltration: Class 4, PN-EN 12207:2001
- Water tightness: Class E1350, PN-EN 12208:2001
- Wind load resistance: to Class C5/B5, PN-EN 12210:2001
