MB-SR50N EI,
MB-SR50N EI EFEKT Fire-rated mullion and transom curtain wall

Airtightness

class AE 1050 Pa | PN-EN 12152

Watertightness

class RE1200 | PN-EN 12154

Thermal insulation Uf

>1,8 | W/(m2K)

Fire resistance classes

EI30 and EI60 | EN 13501-2

Our projects

  • Aluprof fire protection systems allow to make different building elements responsible for organization so called fire zones in buildings and ensure suitable conditions for evacuating people.

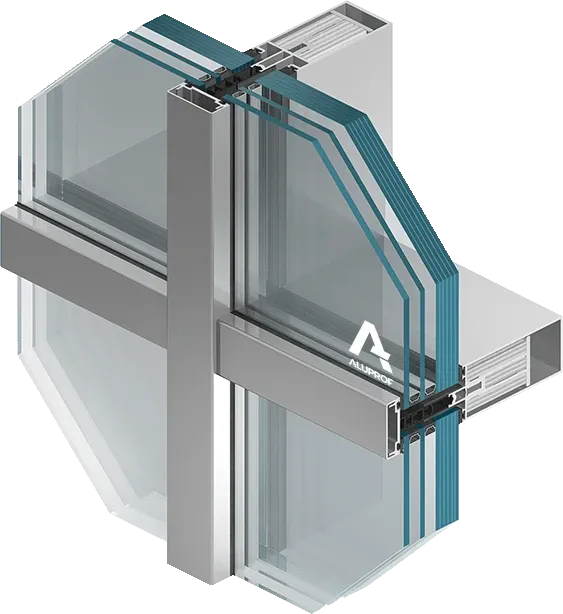

    Mullion-transom curtain walls MB-SR50N EI and MB-SR50N EI EFEKT are designed for fabrication of lightweight, hung & in-filled fire-resistant curtain walls classified fire-resistant EI 30-EI 60. They allow to create both flat and frangible walls with connections between modules up to ± 7,5° aside and tilted curtain walls inclined ± 10°. These curtain walls can use MB-78EI-based fire doors. MBSR50N EI and MB-SR50N EI EFEKT systems can be used as a basis for fire-resistant glazed roofs of an inclination angle of 0° to 80° classified fire-resistant REI 30 / RE 45.

    FEATURES AND BENEFITS

    • the same appearance for fire and non-fire rated elements of curtain wall façade
    • various design and aesthetics options for capping
    • system flexibility allows facetted joints up to ±7,5° per side, and inclined façades up to ±10° as well as slope & roof glazing between 0° and 80°
    • full compatibility with MB-78EI system allows fire rated door to be fitted into a curtain wall
