MB-SR60 NY Mullion-transom wall system

Our projects

  • 61 Ninth Avenue


    Location: New York
    Project: Rafael Vinoly Architects

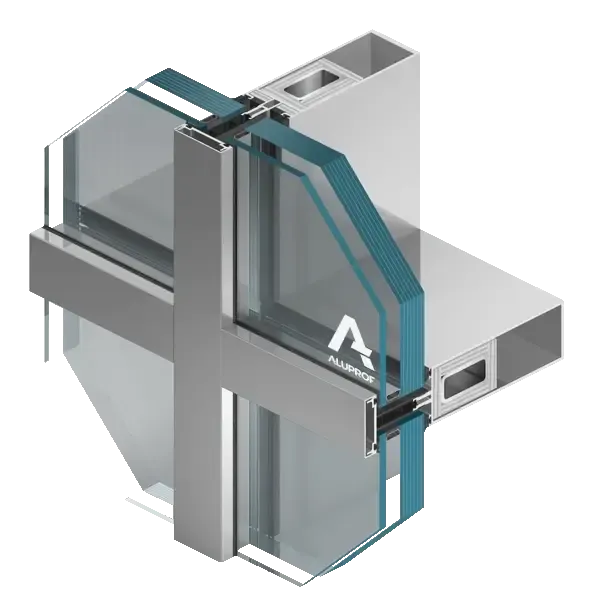

    MB-SR60NY is a mullion and transom curtain wall system designed specifically for the American market. Insulating glass units are mechanically fixed by means of the glazing bars screwed to the supporting structure with screws. This façade is available both in the basic version and in the EI60-rated fire-resistant version. Both versions can be combined without apparent differences in the façade. Constructional solutions of the façade allow to aesthetically combine glazed walls with non-transparent panels finished with metal sheet, and with concrete panels. The system has been successfully tested at National Certified Testing Laboratories.

    The 61 Ninth Avenue is the first project to use MB-SR60NY system. The building has 12 floors and a surface area of over 67,800 sq. ft. Constructional solutions used in the structure will provide greater freedom in the arrangement of the building space, and numerous terraces will merge the inside with the outside. MB-SR60NY-based glazed aluminum curtain walls will have a surface area of 43,500 sq. ft., of which over 1/3 will be fire-rated constructions.

    Performance

    • Structural Performance Testing - design load: ± 32 puff (ASTM E330-02(10) standard)
    • Air Leakage Testing: 6,24 puff (ASTM E283-04(12) standard)
    • Water Penetration Resistance Testing: 12 puff (ASTM E331-00(09) standard)
    • Dynamic Water Penetration Resistance Testing: 12 puff (AAMA 501.1-05 standard)
    • Vertical Inter-Story Movement Testing: 1/2” (AAMA 501.7-11 standard)
    • Horizontal Movement Testing: 1/2” (AAMA 501.4-09 standard)
    • Fire Resistance Ratings: Non-Bearing Wall Rating - 1Hr (ANSI / UL 263 standard)
