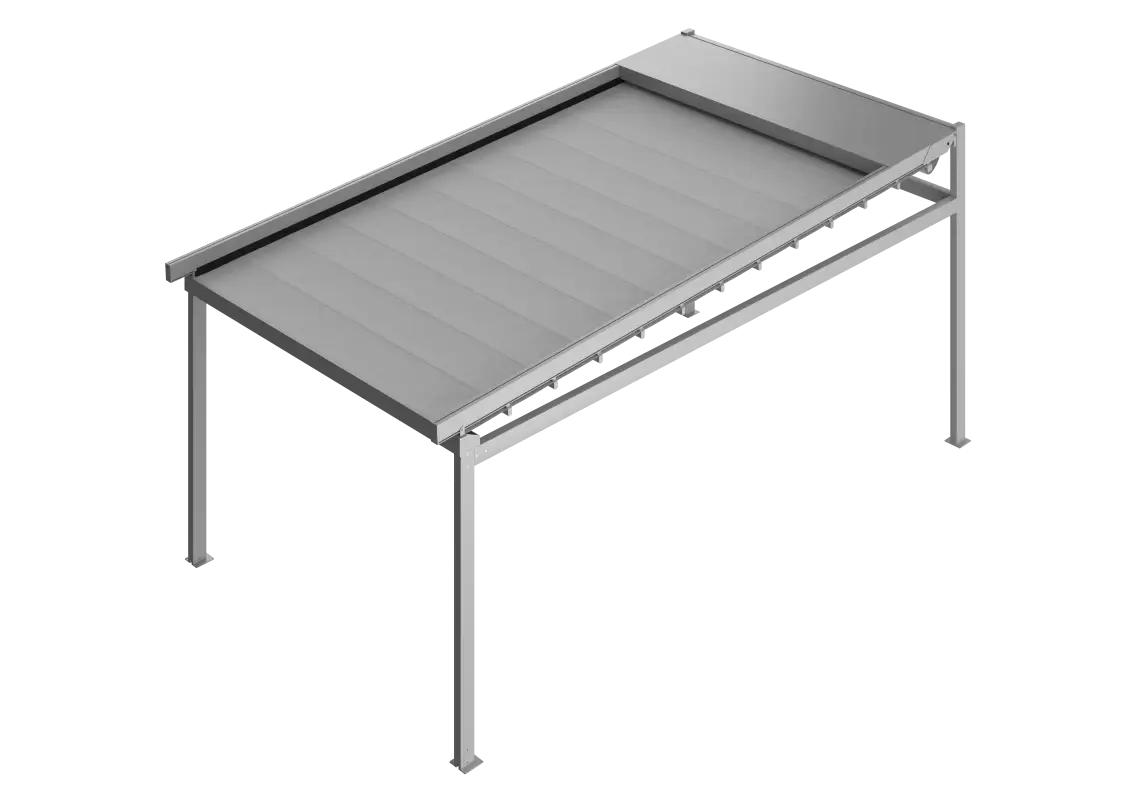

PERGOLA SOLID
Maximum width
4.0 m
Cover
PVC fabricdedicatedfor Solid system
Internal application
No
External application
Yes
Manual drive
No
Electric drive
Yes
Tilt angle
5°–10°
Beam height
165 mm
Maximum projection
7.0 m
Maximum height
2.5 m
Modular system
Yes
A characteristic feature of Pergola Solid is the sloping, retractable roof made of durable polyester fabric.
It is an effective cover against both sun and rain. The movable roof is available in several colour options, which allows you to match the appearance of the pergola to other elements of the building or small architecture. The material used in the roof does not let the light through, effectively protecting against sun and excessive heating. It is fully waterproof and resistant to the influence of UV rays. Opening and closing of the roof takes place thanks to motor operation and can be started remotely.
Pergola Solid will also prove itself in complex multi-module configurations. The tilt angle of the roof structure can be adjusted to the type of construction in the range from 5 to 10 degrees, ensuring proper water drainage

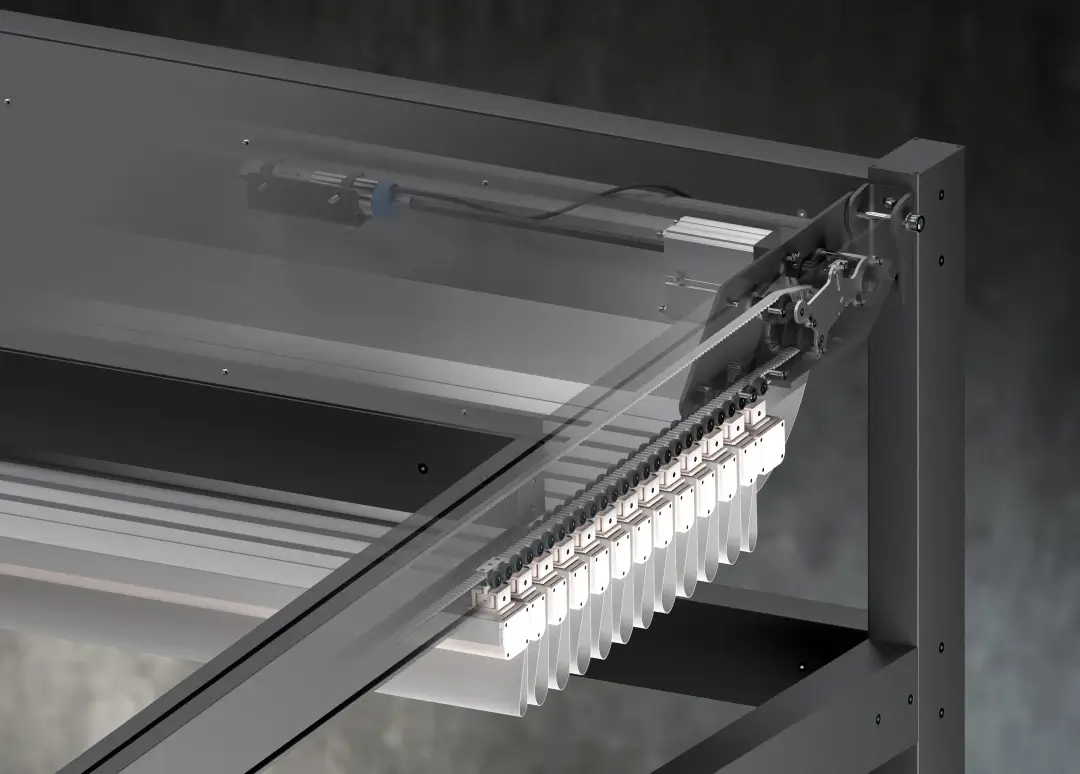

Retractable roof
Solid Pergola roof is made of highly durable blackout fabric that provides effective protection against the sun. The roof can be fully opened and closed as well as stopped in any position, hence it is possible to adjust the size of the cover to the prevailing conditions.
Access to sunlight
When the conditions are favourable and you want to draw solar energy and warm yourself up in the first rays of sunshine in the morning, you can fully fold the roof, thereby ensuring free access of sunlight.

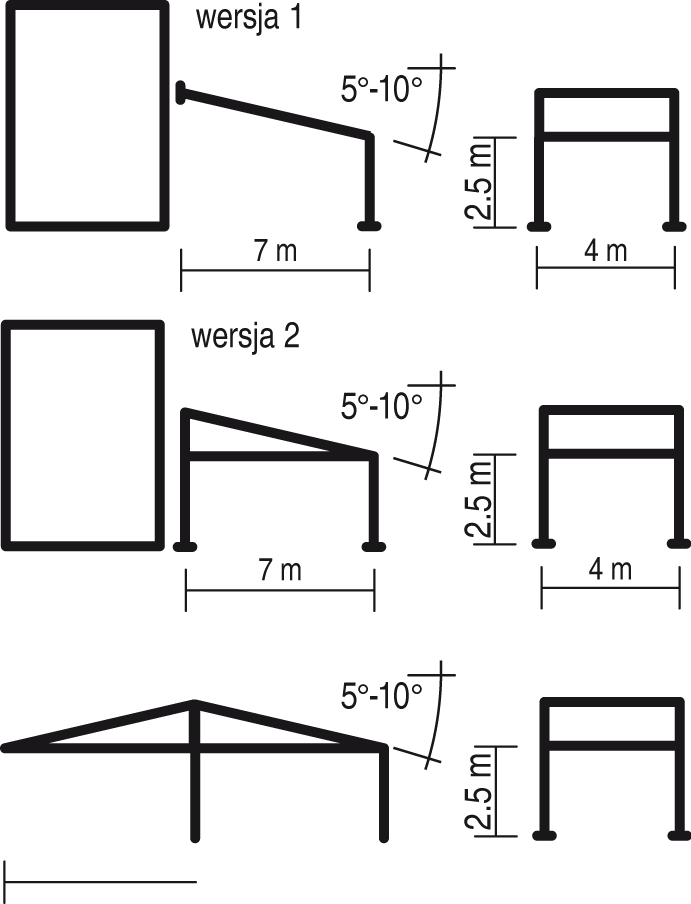

Possibility to adjust the angle of pergola roof
The structure of Pergola Solid roof allows to define the angle of the roof at the installation stage. The range is 5 to 10 degrees.
Free-standing
Pergola
Selt Pergolas can be a fully independent, free-standing structure that can be adjusted to the size of the terrace, swimming pool or other space that requires appropriate protection from the sun. Such solution is often used in large gardens, where in addition to shading, it allows the separation of functional relaxation zones.
Wall-mounted
Pergola
In this version the pergola is attached to the external wall with the use of intended wall brackets. As a wall-mounted version pergola becomes a natural extension of the living area and will not only serve as a cover for terrace, but will also allow you to shade the interior of the building.
BLANC 602N OPAQUE 8503
BEIGE 602N OPAQUE 0020
ALU GREY 702 OPAQUE 1285
-
Technical supplement - PERGOLAS65.46 MB / pdf
-
Technical & installation document Pergola SOLID4.09 MB / pdf
-
Declaration of performance Solid construction711.03 KB / pdf
-
Declaration of performance Solid Roof380.47 KB / pdf
-
Declaration of Conformity Solid772.57 KB / pdf
