Rock

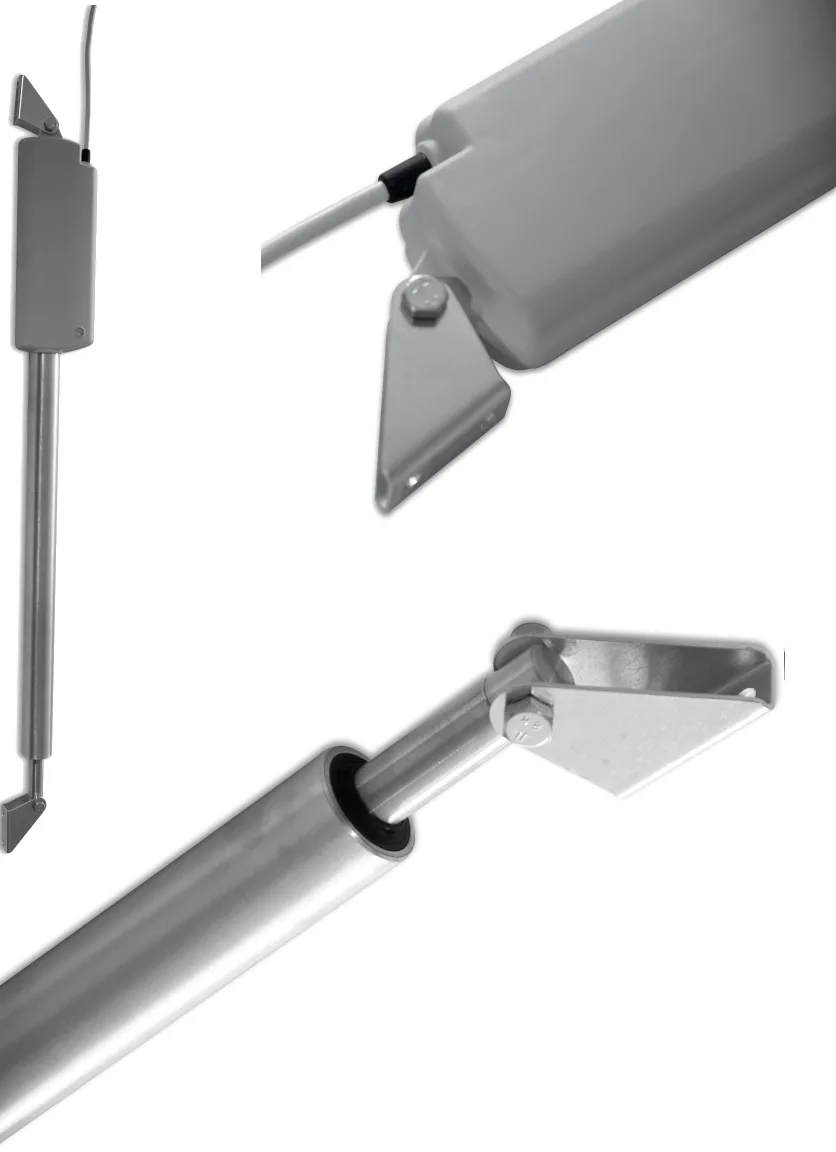

LINEAR ROD ACTUATOR

ROCK is a linear actuator in a high-strength composite fiberglass housing, suitable for operating the Sunbreaker sun protection system

• Pulling/pushing force 500 N; • Power supply 110-230V~(AC)50/60Hz, parallel connection possible; • Extension range can be adjusted up to 200 mm. • Power consumption during operation 17W • Built to class II insulation – has 3 conductors with 3VVF type cable insulation, white colour • Extension speed approx. 4mm/s (i.e. for a fixed extension of 150 mm for the SB210 system, the opening/closing time is approx. 38s) • Operating temperature range from -20°C to +70°C • Protection rating against external factors IP66 (i.e. dust-proof and resistant to periodic flooding with water) • Power cord length 2m
