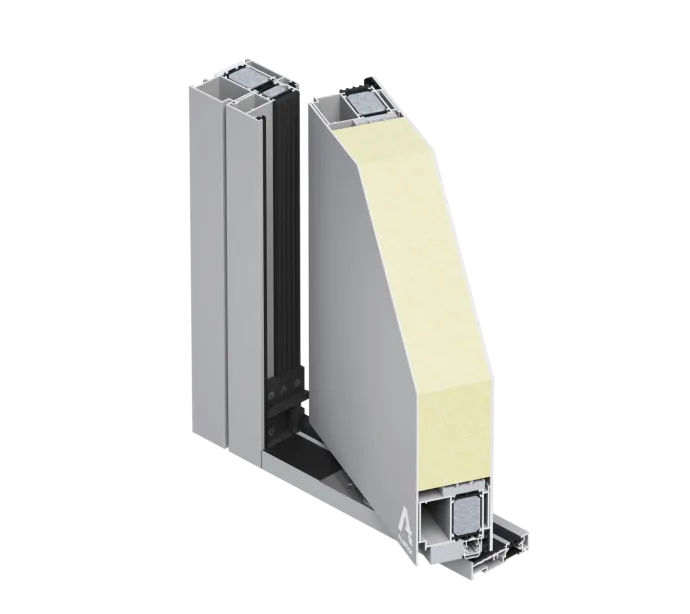

MB-86N Pivot Door Exterior door with an off-centre rotation axis

Maximum leaf dimensions

2,0 x 3,4 m

Thermal performance

UD from 0,73 (W/m2K)

Airtightness

class 3

Watertightness

class 3B

Our projects

  • The MB-86N Pivot Door is an external structure. Its primary features are its impressive dimensions and out-of-the-box design. The off-centre rotation axis endows the door with a unique look, while the concealed hinges provide a very high load capacity. Structures of this kind are popular with architects and are often used for projects where large-scale dimensions and original design play a major part. Pivot doors are recommended whenever there is a requirement to ensure that an entryway is powerfully accentuated and performs as a showpiece element of a building’s façade.

    ALUPROF’s MB-86N Pivot Doors are a statement alternative to their classic profiled, sliding or bifold counterparts. The system can be used to create panelled and glazed doors featuring excellent thermal and acoustic performance, along with first-class air- and watertightness, making it possible to meet requirements for energy efficiency and environmental protection. Other unique aspects include a customised locking system offering one- or two-latch options. System characteristics:

    • large-scale leaves measuring up to 2 m wide and 3.4 m high
    • off-centre pivot
    • leaves or glazed insulating units up to 60 mm thick
    • concealed bearing hinges with a load capacity of up to 500 kg
    • three thermal construction variants, the ST, the SI and the SI+
    • locked by means of alternating strips on the leaf and frame
    • the bottom is sealed using a drop seal
    • the low, 20 mm threshold can be fully built in, obtaining a ‘zero threshold’ effect with the possibility of draining water to the outside
    • linear drainage can be installed
    • quick and efficient leaf installation and uninstallation
    • the solution is based on ALUPROF’s MB-86N system profiles
    • the Pivot threshold can be used as a ‘zero threshold’ with the regular MB-86N system door solutions
