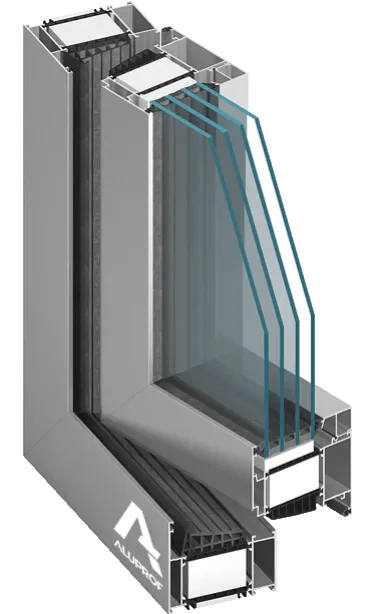

MB-104 PASSIVE SI, AERO Window & door system that provides the highest thermal insulation performance
Thermal insulation for an openable window
UW from 0,52 | W/(m2K)
Windload Resistance
class C5/B5 | PN-EN 12210:2001
Watertightness for openable window
class AE 1800 | PN-EN 12208:2001
Air Permeability for openable window
class 4 | PN-EN 12207:2001
MB-104 Passive is a thermal break window & door system that provides class leading thermal insulation performance and meets all the requirements for passive building components.
The system is used to provide various types of windows, doors and structures, that are characterised with excellent thermal insulation, improved sound insulation, 1800 Pa water and air tightness with high structural strength.
The MB-104 Passive system's frame components comes in two variants, depending on the requirements for thermal energy savings, an SI or AERO configuration.
The MB-104 Passive door & window system exceed the current requirements of the strictest applicable regulations and standards ensuring that the MB-104 Passive system remains dedicated to energy-efficient and passive building construction.
Why MB-104 Passive?
- Passive House Institute Darmstadt-certified windows either the MB-104 Passive SI or MB-104 Passive Aero
- excellent thermal insulation performance for openable window with: UW from 0,53 W/(m2K) and with door UD from 0,62 W/(m2K)
- improved levels of weather tightness and insulation performance
- wide range of glazing options up to 81mm
- exterior doors available in both glazed and panelled options making its choice a perfect entrance door option to a modern home
MB-104 Passive can also be used to fabricate highly aesthetic panel doors that meet the expectations of the most demanding users.
