Modern, comprehensive solutions

ALUPROF’s aluminium systems can be fabricated into many different styles of windows, doors and curtain wall. System flexibility allows the architect to specify their exact requirements for functionality, aesthetics, thermal insulation, burglary resistance, smoke control or fire resistance. This flexibility extends to systems with no thermal insulation, designed to fabricate internal partition walls and doors such as the MB-Harmony Office, MB-45, MB-45 Office and MB-EXPO, or balcony developments such as the MB-Slider Window system, and solutions based on thermally insulated profiles such as the MB-60, MB-70 and MB-59S. Many of the thermally insulated systems are available in a “HI” variant with special inserts into the profiles that lower the thermal conductivity coefficient.


The highest thermally insulated window offered by ALUPROF is the MB-104 PASSIVE system which uses innovative materials to offer unique designs. It is one example of ALUPROF systems that perfectly meets the objectives of energy-efficient for passive buildings.

The MB series offers a wide range of opening styles including top, side or bottom hung, with other variants which include; lifting sliding patio doors MB-77HS, sliding windows & doors, MB-59S Slide and MB-59S Slide Galandage, pivot windows, outward openable windows such as the MB-70 Casement, or windows dedicated to specific façade solutions such as MB-60EF. Aluprof also offer a slim frame sight line system known as “Industrial” style, which is dedicated to the refurbishment or renewal of historic buildings.

Various MB series systems allows the fabrication of sliding folding doors, burglary resistant constructions, and smoke exhaust windows. For architects who want to reconcile the right specification with an affordable price, Aluprof offer a whole range of economic solutions, such as MB-45S, MB-59SE, and MB-60E.

Aluprof systems can offer fire and smoke-resisting partition walling, such as the MB-78EI with a fire resistance class of EI15—EI90 and the MB-118EI also with the fire resistance class of EI120. These products can be completed with smoke-resisting only doors such as the MB-45D.

ALUPROF’s wide range of solutions are sympathetically developed in order to best meet the needs of today’s contemporary architecture whilst meeting the requirements of increasingly stringent standards and regulations.

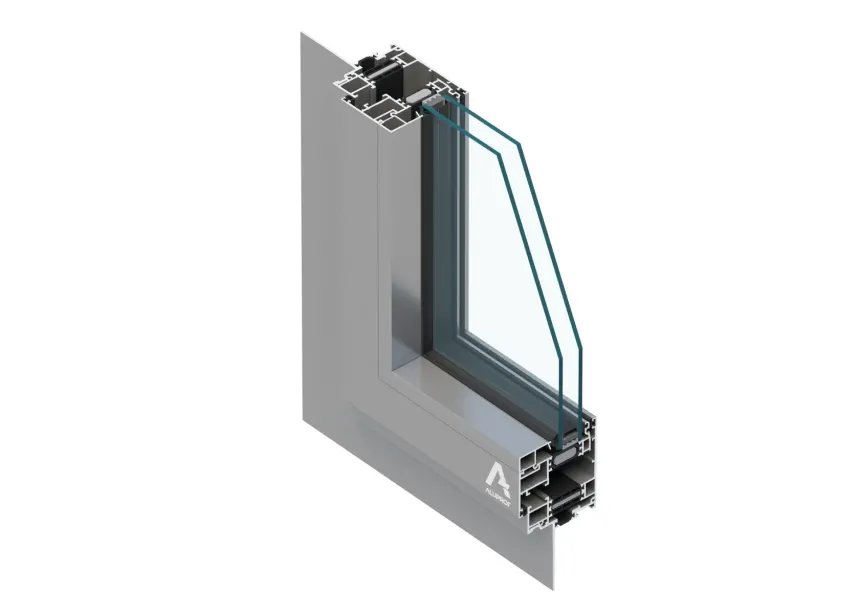

MB-79N
MB-79N
Windows and doors with thermal insulation
  • Thermal insulation of profiles
    Uf > 0,83 | W/(m2K)
  • Watertightness of windows
    E 1950
  • Air permeability
    class 4 | EN 12207:2001
  • Acoustic protection
  • Burglar resistance
  • Façade windows
  • Elevation windows
  • Inward opening
  • Standard
  • With thermal insulation

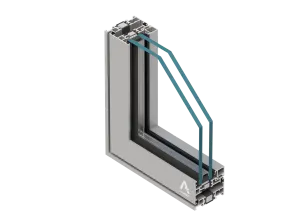

MB-79N CSF
MB-79N CSF
Slimline Windows
  • Minimum width of fixed window profiles
    35,2 mm
  • Minimum width of operable window profiles
    60,5 mm
  • Maximum casement weight
    80 kg
  • Elevation windows
  • With thermal insulation
  • Slim profile
  • Outward opening
MB-SR50N OW HI+
MB-SR50N OW HI+
Awning-parallel outward-opening window with high thermal insulation
  • Façade windows
  • Outward opening
  • Slim profile
  • Standard
  • With thermal insulation
MB-79N US
MB-79N US
A window with a concealed sash
  • Elevation windows
  • Inward opening
  • Concealed sash
  • With thermal insulation
  • Façade windows
MB-79N CASEMENT
MB-79N CASEMENT
Outward-opening window
  • Air tightness
    class 4
  • Watertightness
    class E 1800
  • Thermal insulation
    Uw od 0,74 W/(m²K)
  • Windload Resistance
    class C5/B5
  • Elevation windows
  • Low-level threshold
  • Outward opening
  • Standard
  • With thermal insulation
  • Façade windows
MB-86N
MB-86N
Thermally insulated window and door system
  • Thermal performance: profiles
    Uw from 0.62 | W(m2K)
  • Air permeability: windows
    class 4 | PN-EN 12207
  • Watertightness: windows
    class E 4800 Pa | PN-EN 12208
  • Wind load resistance: windows
    class C5 | PN-EN 12210
  • Elevation windows
  • Façade windows
  • With thermal insulation
  • Standard
  • Inward opening
  • Acoustic protection
  • Burglar resistance
  • Low-level threshold
Smoke Exhaust Windows and Roof vents
Smoke Exhaust Windows and Roof vents
  • Maximum window sash dimensions (horizontal configuration)
    W up to 2500 mm, H up to 1600 mm
  • Maximum window sash dimensions (vertical configuration)
    W up to 1600 mm, H up to 2500 mm
  • Maximum roof window sash dimensions
    W up to 1500 mm, H up to 2200 mm
  • Automatic drive
  • With thermal insulation
  • Windows
MB-INSTALLATION SOLUTION
MB-INSTALLATION SOLUTION
  • Thermal conductivity coefficient of EPS polystyrene
    λ = 0.032 W/(m²K)
  • Width of thermal installation beams
    100 or 200 mm100 lub 200 mm
  • Supplementary products
MB-SR50N RW
MB-SR50N RW
Skylight window
  • Air tightness
    class 4 | EN 12207
  • Watertightness
    E 1800 | EN 12208
  • Impact resistance
    class 4 | EN 1873
  • Thermal insulation Uf
    >1,8 | W/(m2K)
  • Façade windows
  • With thermal insulation
  • Standard
  • Outward opening
MB-SR50N ZS
MB-SR50N ZS
Mullion and transom curtain wall system integrated with SkyFlow venetian blinds
  • Air permeability
    class AE1200 | Pa
  • Watertightness
    class RE1200 | Pa
  • Wind load resistance
    2,4 | kN/m2
  • Supplementary products
MB-RW
MB-RW
Roof window system
  • Air tightness
    class 4 (1300 Pa) | EN 12207
  • Watertightness
    E 1800 | EN 12208
  • Impact resistance
    class 4 | EN 1873
  • Thermal insulation Uf
    >1,8 | W/(m2K)
  • Façade windows
  • With thermal insulation
  • Standard
  • Outward opening
MB-SLIMLINE
MB-SLIMLINE
Windows with slim profiles
  • Air tightness
    class 4
  • Watertightness
    class E 1500
  • Thermal insulation UW
    > 0,8 | W/(m2K)
  • Burglar resistance
  • Elevation windows
  • Inward opening
  • Slim profile
  • With thermal insulation
MB-104 PASSIVE SI, AERO
MB-104 PASSIVE SI, AERO
Windows and doors
  • Thermal insulation for an openable window
    UW from 0,52 | W/(m2K)
  • Windload Resistance
    class C5/B5 | PN-EN 12210:2001
  • Watertightness for openable window
    class AE 1800 | PN-EN 12208:2001
  • Air Permeability for openable window
    class 4 | PN-EN 12207:2001
  • Elevation windows
  • Low-level threshold
  • Burglar resistance
  • Acoustic protection
  • Inward opening
  • Standard
  • Passive
  • Façade windows
MB-86US ST, SI
MB-86US ST, SI
Concealed window system
  • Air tightness
    class 4 | PN-EN 12207:2001
  • Watertightness
    class E1350 | PN-EN 12208:2001
  • Wind tightness
    class C5/B5 | PN-EN 12210:2001
  • Elevation windows
  • Façade windows
  • With thermal insulation
  • Concealed sash
  • Inward opening
  • Burglar resistance
MB-45
MB-45
Door and window system without a thermal break
  • Max dimensions of the door leaf (H × L)
    H up to 2400 mm; L to 1250 mm
  • Max weight of the sash (door / window)
    120-130 kg
  • Without thermal insulation
  • Elevation windows
  • Inward opening
MB-86 Casement
MB-86 Casement
Outward-opening windows
  • Air tightness
    class 4
  • Watertightness
    class E 1950
  • Windload Resistance
    class C5
  • Elevation windows
  • Low-level threshold
  • Outward opening
  • Standard
  • With thermal insulation
  • Façade windows
MB-FERROLINE
MB-FERROLINE
Slim-profile windows
  • Air tightness
    class 4 | PN-EN 12207
  • Watertightness
    class E1350 | EN 12208
  • Wind tightness
    class C5 | EN 12210
  • Anti-burglary class
    RC2
  • Loft
  • Low-level threshold
  • Acoustic protection
  • Façade windows
  • Elevation windows
  • Inward opening
  • Barrier-free threshold
  • With thermal insulation
MB-SR50N IW
MB-SR50N IW
Bespoke curtain walling system with integrated window
  • Thermal insulation
    UW from 1,68 | W/(m2K)
  • Watertightness
    E1500 | EN 122008
  • Wind tightness
    E2400 | EN 12210
  • Impact resistance
    E5/I5
  • Mullion and transom façades
  • Façade windows
  • With thermal insulation
  • AVAILABLE UNTIL 3/2026
MB-70
MB-70
Window-door system with a thermal break
  • Thermal insulation Uf
    > 1,5 | W/(m2K)
  • Air tightness window
    class 4
  • Watertightness
    class E1200
  • Wind tightness
    class C5
  • Elevation windows
  • Burglar resistance
  • Acoustic protection
  • Inward opening
  • Loft
  • Standard
  • With thermal insulation
  • Façade windows
MB-SLIDER WINDOW
MB-SLIDER WINDOW
Sliding window system
  • Supplementary products
  • Raised
  • Sliding
  • Slim profile
  • Without thermal insulation
MB-GLASS BARRIER
MB-GLASS BARRIER
External juliet balcony
  • Glass thickness
    from 8.8 to 20.8 mm
  • Maximum glass width
    2600 mm
  • Maximum glass height
    1200 mm
  • Supplementary products
