REFLEKSOL 85 A
Maximum width
2.6 m
Maximum height
2.6 m
Electric drive
Yes
Manual drive
No
External application
No
Internal application
Yes
Fabric
Refleksol fabrics
dedicated to the system
Modular system
No

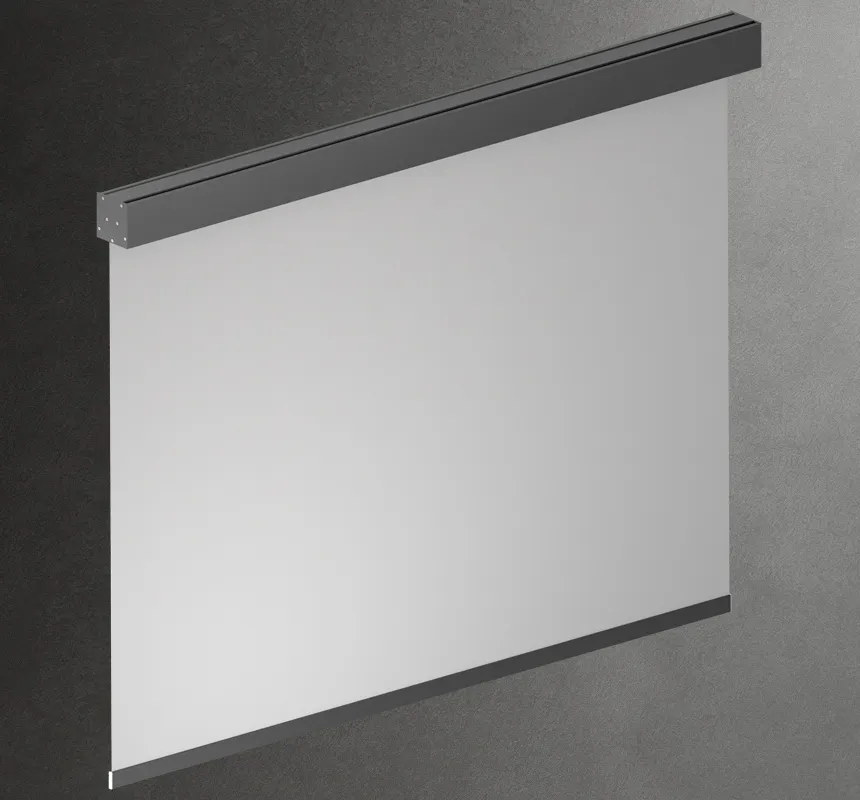

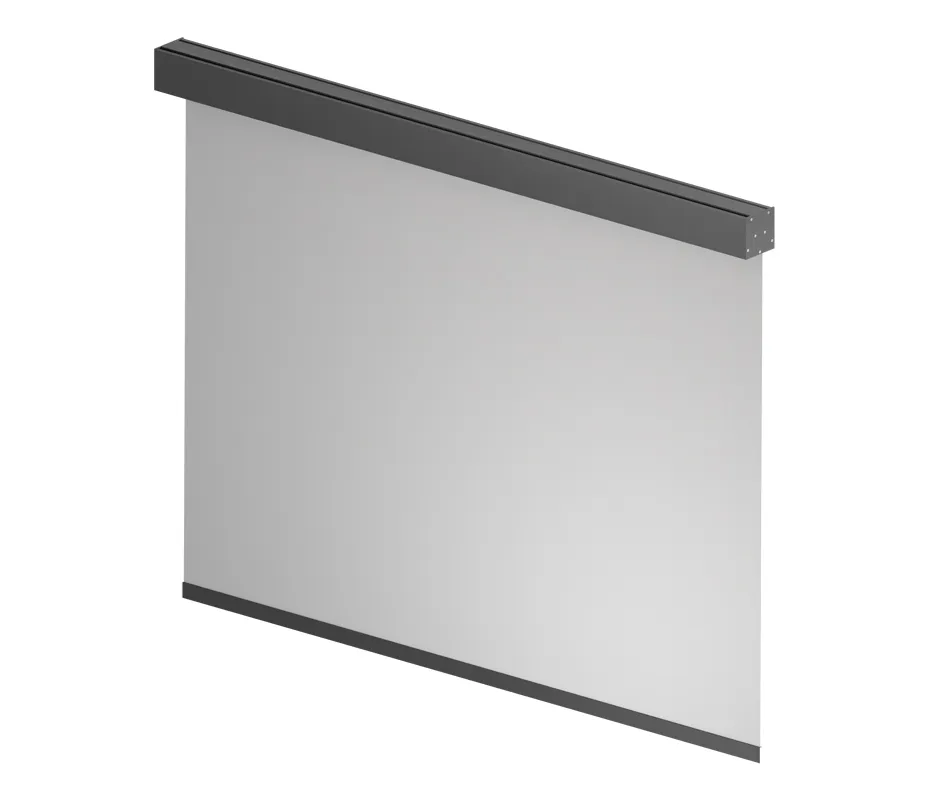

Refleksol 85A is a lightweight automatic cassette system designed for interiors.

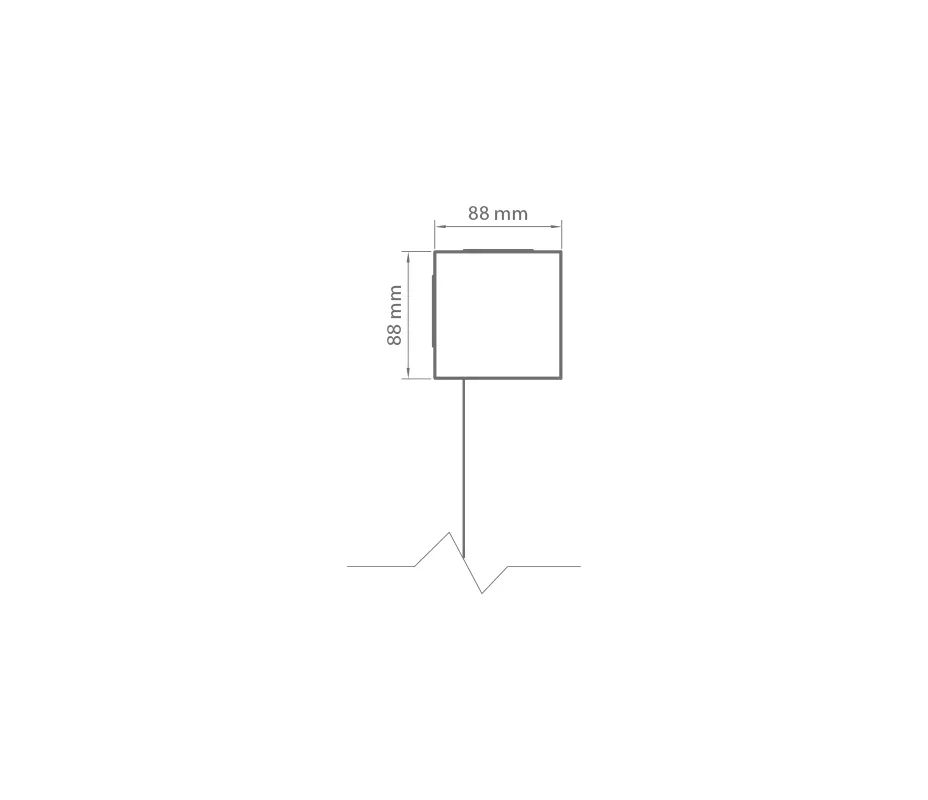

The square cassette is made of extruded aluminium. The advantage of this model are metal side covers of the cassette painted in the same colour as the construction, which guarantees visual consistency.
Lightness of form
The construction based on a square cassette that is light in form and consistent in colour. The metal side covers are painted in the same colour as the cassette which creates a harmonious whole.
Free-hanging system

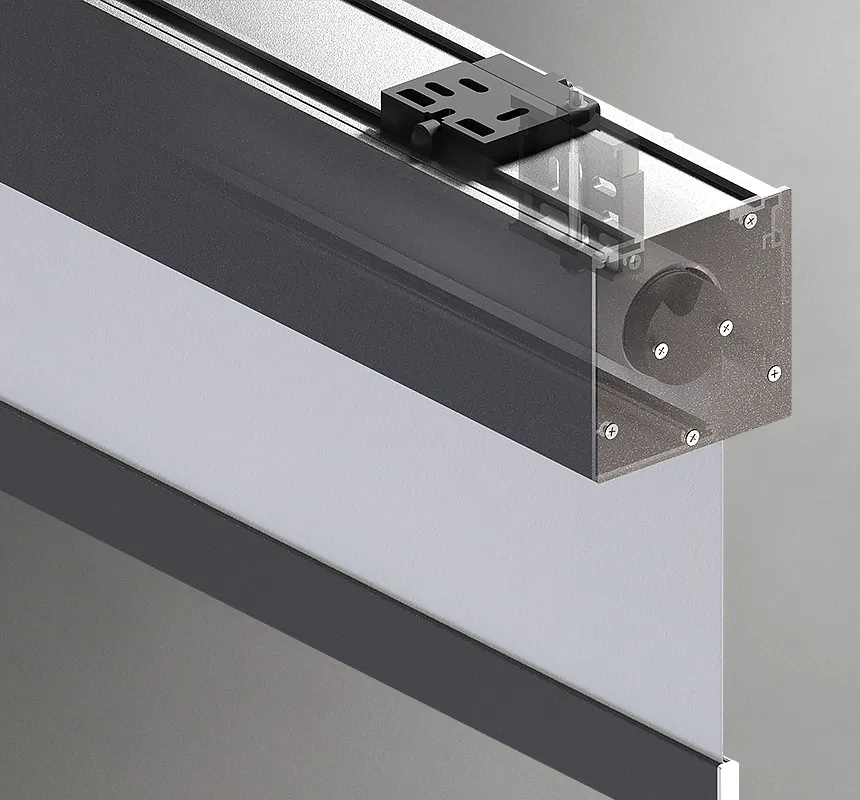

The fabric is rolled up to a square cassette which is also the element that holds the system on the wall.
A wide group of technical polyester fabrics coated with PVC, characterized by a variety of weaving patterns and properties (PS Luminous, PS 550, PS 350). This allows architects to select the right solution, increasing visual attractiveness of the building and to emphasize its individual character. High technical parameters provide optical and thermal comfort inside the room. An additional feature of the fabric is the ease to keep it clean. Fabric for internal use.
White
Polyscreen 350
White Linen
Polyscreen 350
Ash
Polyscreen 350
Pearl Grey
Polyscreen 350
A wide group of technical polyester fabrics coated with PVC, characterized by a variety of weaving patterns and properties (PS Luminous, PS 550, PS 350). This allows architects to select the right solution, increasing visual attractiveness of the building and to emphasize its individual character. High technical parameters provide optical and thermal comfort inside the room. An additional feature of the fabric is the ease to keep it clean.
White
Polyscreen 550
White Grey
Polyscreen 550
White Linen
Polyscreen 550
White Pearl
Polyscreen 550
Pearl Grey
Polyscreen 550
Pearl Linen
Polyscreen 550
Perl Sand
Polyscreen 550
Ash
Polyscreen 550
Polyester technical fabric coated with PVC which is manufactured with patented technology Precontraint Ferrari®. The unique technology gives the fabric high stability and protects it against deformations even in large size systems.
Charcoal 2047
Soltis 92
Concrete 2167
Soltis 92
Deepblack 51176
Soltis 92
Sandy Beige 2135
Soltis 92
Silver 2048
Soltis 92
Silver Black 2045
Soltis 92
Silver White 2051
Soltis 92
Collection of fabrics with an admixture of glass fibre coated with PVC. Fabrics from this group have a characteristic “Serge” weave, which guarantees their unusual dimensional stability. High fire resistance and very good technical parameters of the fabrics provide users with visual comfort in rooms, thus protecting against excessive heating of the interior.
Bronze Bronze
Serge 1%
Charcoal_Charcoal 10010
Serge 1%
Grey Charcoal 01010
Serge 1%
Grey Grey 01001
Serge 1%
Grey White 01002
Serge 1%
Linen Linen
Serge 1%
Pearl Grey 07007
Serge 1%
White White 02002
Serge 1%
Collection of fabrics with an admixture of glass fibre coated with PVC. Fabrics from this group have a characteristic “Serge” weave, which guarantees their unusual dimensional stability. High fire resistance and very good technical parameters of the fabrics provide users with visual comfort in rooms, thus protecting against excessive heating of the interior.
Antracite Grey
Serge 600
Charcoal Bronze
Serge 600
Charcoal Charcoal 10010
Serge 600
Grey Charcoal 01010
Serge 600
Grey Grey 01001
Serge 600
Grey White 01002
Serge 600
Linen Linen
Serge 600
Linen White
Serge 600
Grey Sand
Serge 600
Pure Black
Serge 600
Sandstone
Serge 600
Pearl Grey 07007
Serge 600
White White 02002
Serge 600
Polyester technical fabric coated with PVC which is manufactured with patented technology Precontraint Ferrari®. The unique technology gives the fabric high stability and protects it against deformations even in large size systems. High technical parameters provide the users with optical and thermal comfort. The quality of the components used in the production of the fabrics guarantees colour fastness. Thanks to the smooth surface, the fabric is difficult to get dirty. Fabric for internal use.
Alu 2059
Soltis 99
Antracite 2068
Soltis 99
Light Grey 2058
Soltis 99
Quartz 50285
Soltis 99
Sandy Beige 50286
Soltis 99
Spume 50284
Soltis 99
White 2055
Soltis 99
Smooth polyester fabric finished with PVC. The advantages of this fabric are: colour fastness, high resistance to weather conditions and easy to keep clean.
Champagne Swk711
Sunworker
Charcoal Swk392
Sunworker
Iron Swk653
Sunworker
White Swk005
Sunworker
Elegant fabric, made from the highest quality non-flammable polyester fibers Trevira® CS, intended for indoor use. Because of its weight, the fabric is ideally suited for cassette systems. An important advantage of this fabric is high coefficient of acoustics. Thanks to its structure, the fabric absorbs sound and mutes the room. Another advantage is metallic surface that reflects bright light and in this way regulates its intensity in the room.
Grey Silver 115
Veroglim Acoustic
Ivory _Silver 113
Veroglim Acoustic
Light Grey _Silver 114
Veroglim Acoustic
White Silver 111
Veroglim Acoustic
Automation for comfort during work and leisure
The use of full automatic control in sunshades allows you to control the level of solar energy penetrating the interior of the building. In addition, they provide additional protection for the shade in the event of adverse weather conditions. In order to increase energy efficiency and control comfort, it is possible to integrate them with lighting, air conditioning and heating systems and to visualise the current position of the sunshades. Modern automation systems are also characterised by simple installation, easy configuration and reconfiguration
Control
Depending on your needs, the blinds can be controlled using wall switches, remote controls or via the Internet thanks to an application with a convenient interface for use on a computer, tablet or smartphone.
Sensors
The use of wind, sun or temperature sensors in smart buildings allows for automatic control of sunshades depending on changing weather conditions.
Drive
The use of electric drives in sunshades provides comfort of use and the possibility of programming automatic rolling and unrolling of the systems.
-
Catalogue57.43 MB / pdf
-
Portfolio8.97 MB / pdf
-
Fabrics-Slat-Construction colours8.89 MB / pdf
-
Order Form R85565.54 KB / pdf
-
Technical & installation document R85 A1.07 MB / pdf
