MB-45 OFFICE Fixed and openable partitioning system

Our projects

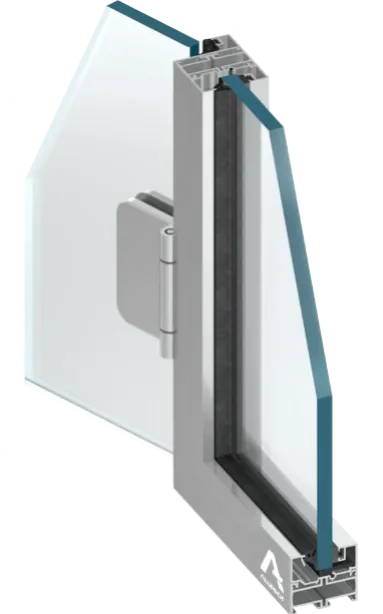

  • The structural depth of profiles is 45 mm, which is identical to the depth of profiles of all the frames and studs of the MB-45 system. Both solutions are fully compatible, which allows to freely combine their profiles. The MB-45 OFFICE is based on a number of base profiles, which after tightening the appropriate adaptive profiles can function as a window or door frame, a transom or a stud. The system is compatible with hinges, locks and automatic door closers manufactured by Aluprof, Geze and WSS. The functionality of this version of the MB-45 system allows to change the interior by removing the connections and re-arranging them, by changing e.g. the angle of integration or its functions.

    The MB-45 OFFICE can use various types of infills and glazing: either single or double, with thicknesses ranging from 2 to 25mm. The system have dedicated, large-size 8- 10- and 12mm thick toughened glass panes that are mounted using strips and glazing gasket.

    Due to its versatility and great possibilities of high room development, the MB-45 OFFICE system is dedicated to constructing light yet solid walls in conference and office rooms with clearly marked doors. The components of this system can be used to make fixed walls and all-glass door leaves (swing and folding).

    The structural depth of profiles is 45 mm, which is identical with the depth of all frame sections and mullions of the basic [MB-45] system (https://aluprof.com/producenci/oferta/systemy-okienno-drzwiowe/mb-45-mb-45d-system-okienno-drzwiowy-bez-izolacji-termicznej#wizualizacja). Both solutions are fully compatible, so the profiles of both systems can be joined almost freely. The MB-45 OFFICE system is based on several base profiles that can act as window frames, door frames, crossbars, or mullions after appropriate adaptive profiles have been screwed down. Hinges, locks, and door closers of Aluprof, Geze, and WSS can be used in it. The functionality of this version of MB-45 system allows the interior arrangement to be changed by dismantling the connections and reassembling them, e.g. changing the installation angle or its functions.

    In the MB-45 OFFICE construction there is a possibility to use different types of fillings and glazing: both single and composite, with thicknesses in the range of 2 - 25 mm. Large-size tempered glass panes with a thickness of 8, 10, and 12 mm are particularly dedicated to this system. They are mounted using glazing beads and gaskets.

    FEATURES AND BENEFITS

    • light and durable structure
    • design depth 45 mm
    • infill ranging from 2-25 mm (dedicated, 8, 10 and 12 mm tempered glass panes)
    • various types of partition walls, windows, doors, including manual & automatic sliding doors, swing doors, vestibules, etc.
    • smoke-resistant doors MB-45D (in Sm and Sa classes )
    • continuously mounted glazing gaskets, no more cutting at the corners
    • possibility of changing interior design
    • adapted to use numerous companies’ hardware products: Aluprof WSS
