MB-86N Pivot Door Exterior door with an off-center rotation axis
Maximum leaf dimensions
2,0 x 3,4 m
Thermal performance
UD from 0,73 (W/m2K)
Airtightness
class 3
Watertightness
class 3B

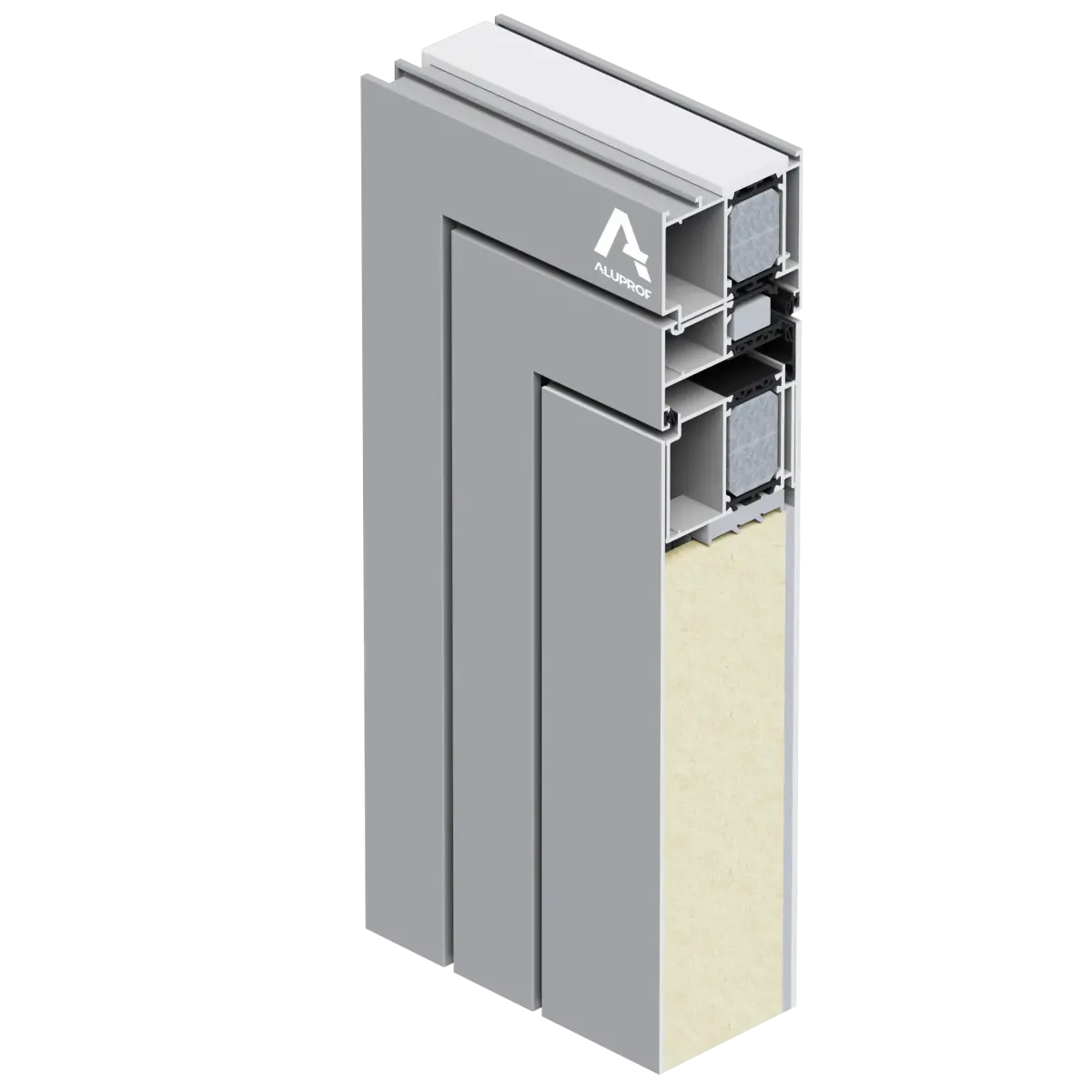

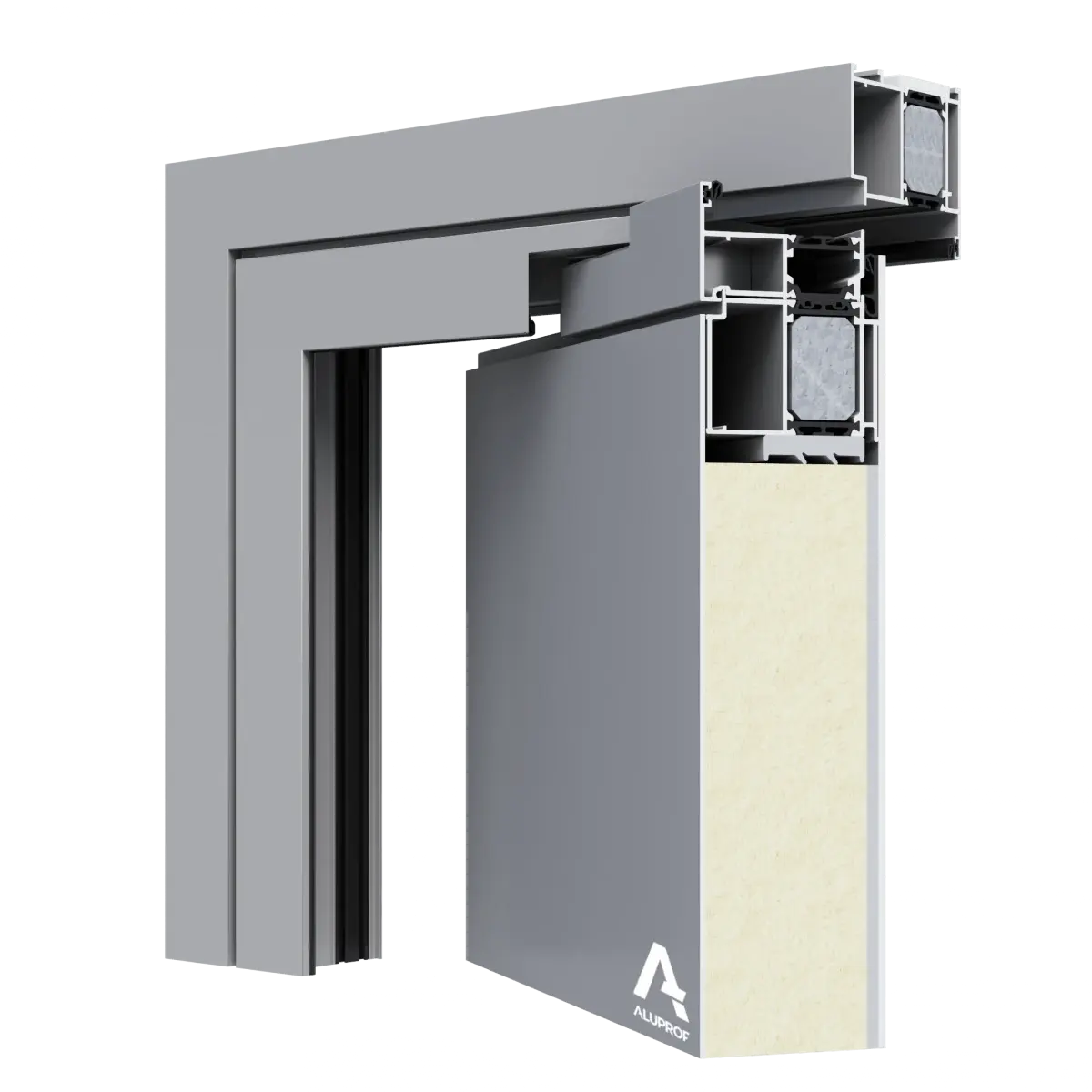

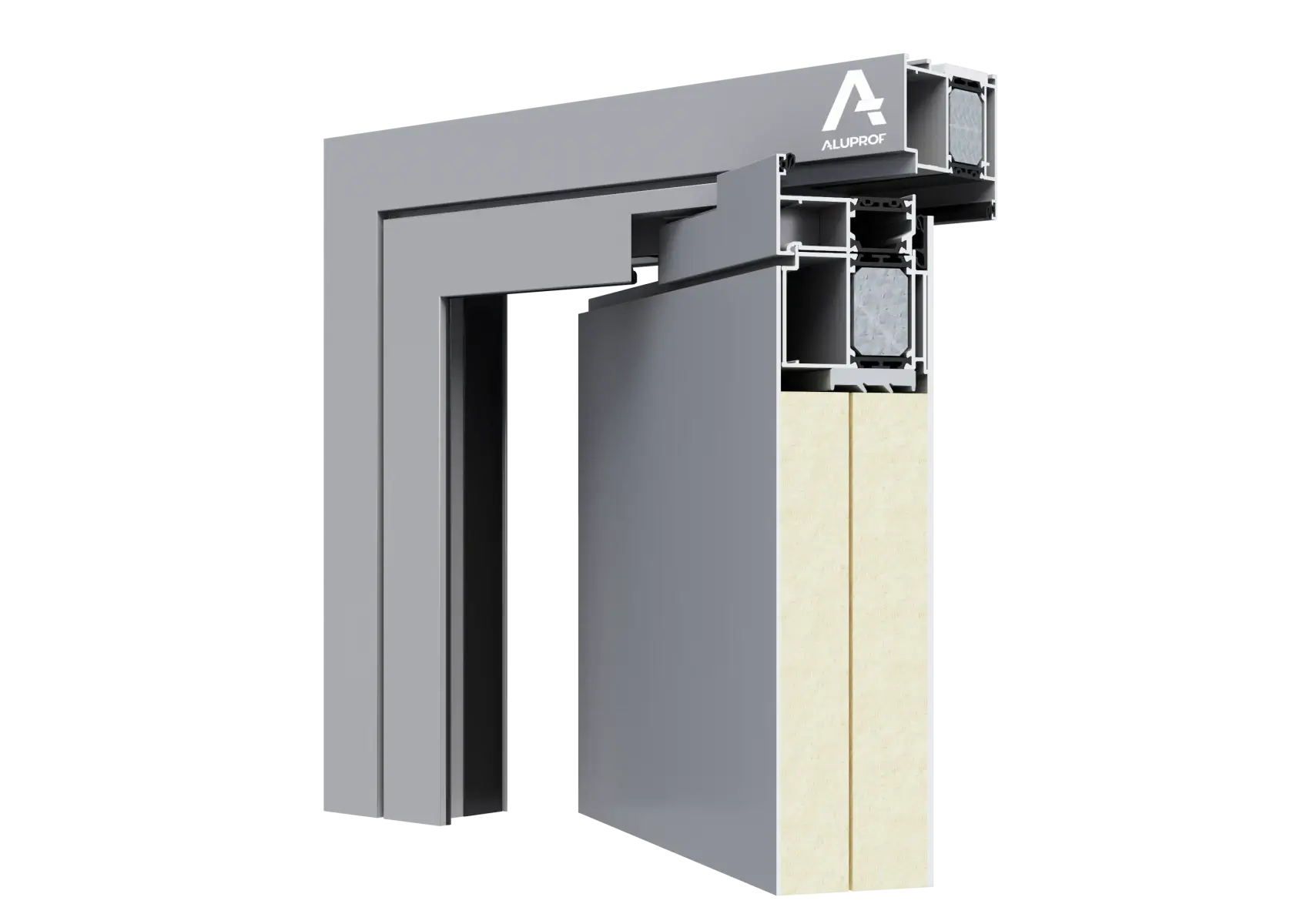

The MB-86N Pivot Door is an external structure. Its primary features are its impressive dimensions and out-of-the-box design. The off-center rotation axis endows the door with a unique look, while the concealed hinges provide a very high load capacity. Structures of this kind are popular with architects and are often used for projects where large-scale dimensions and original design play a major part. Pivot doors are recommended whenever there is a requirement to ensure that an entryway is powerfully accentuated and performs as a showpiece element of a building’s façade.

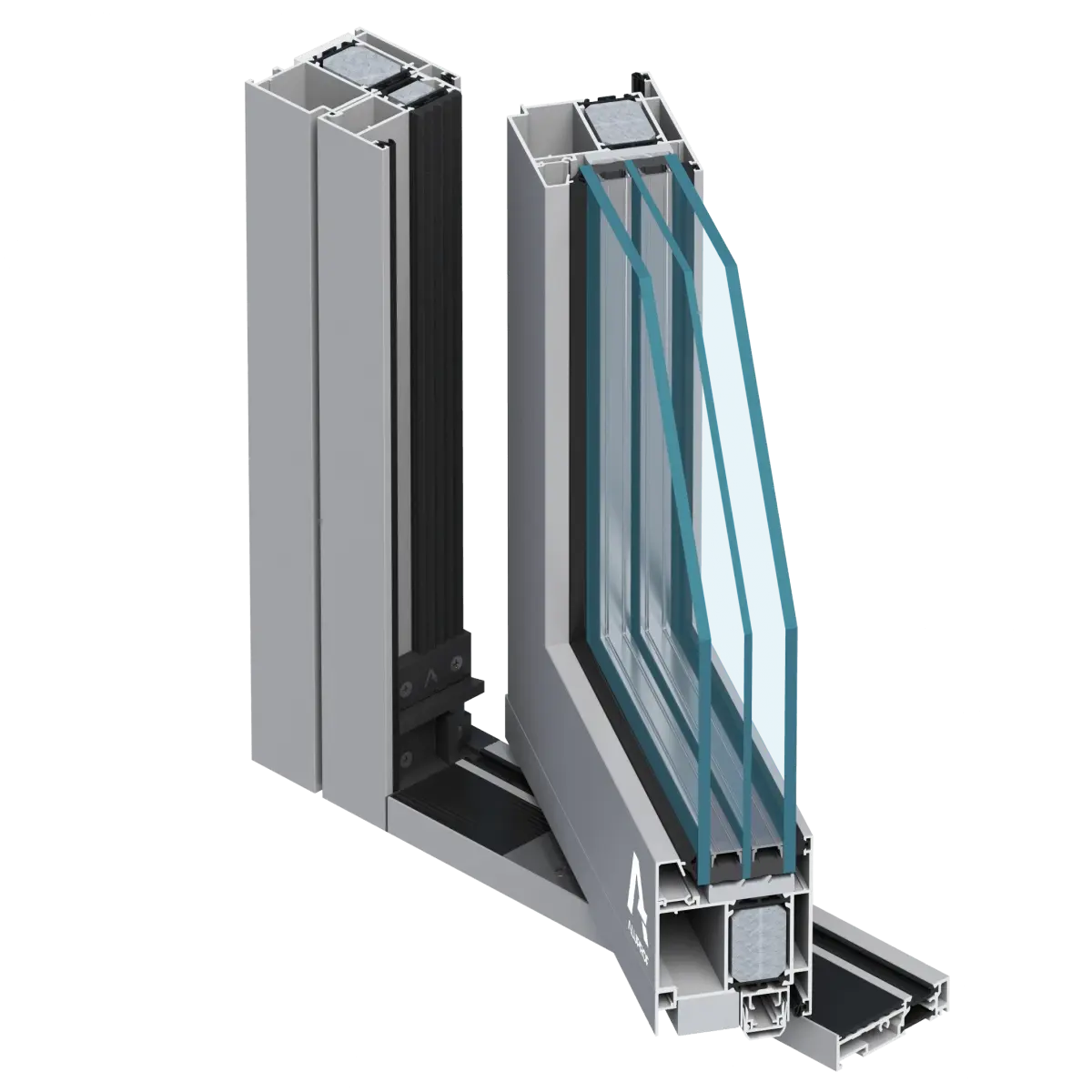

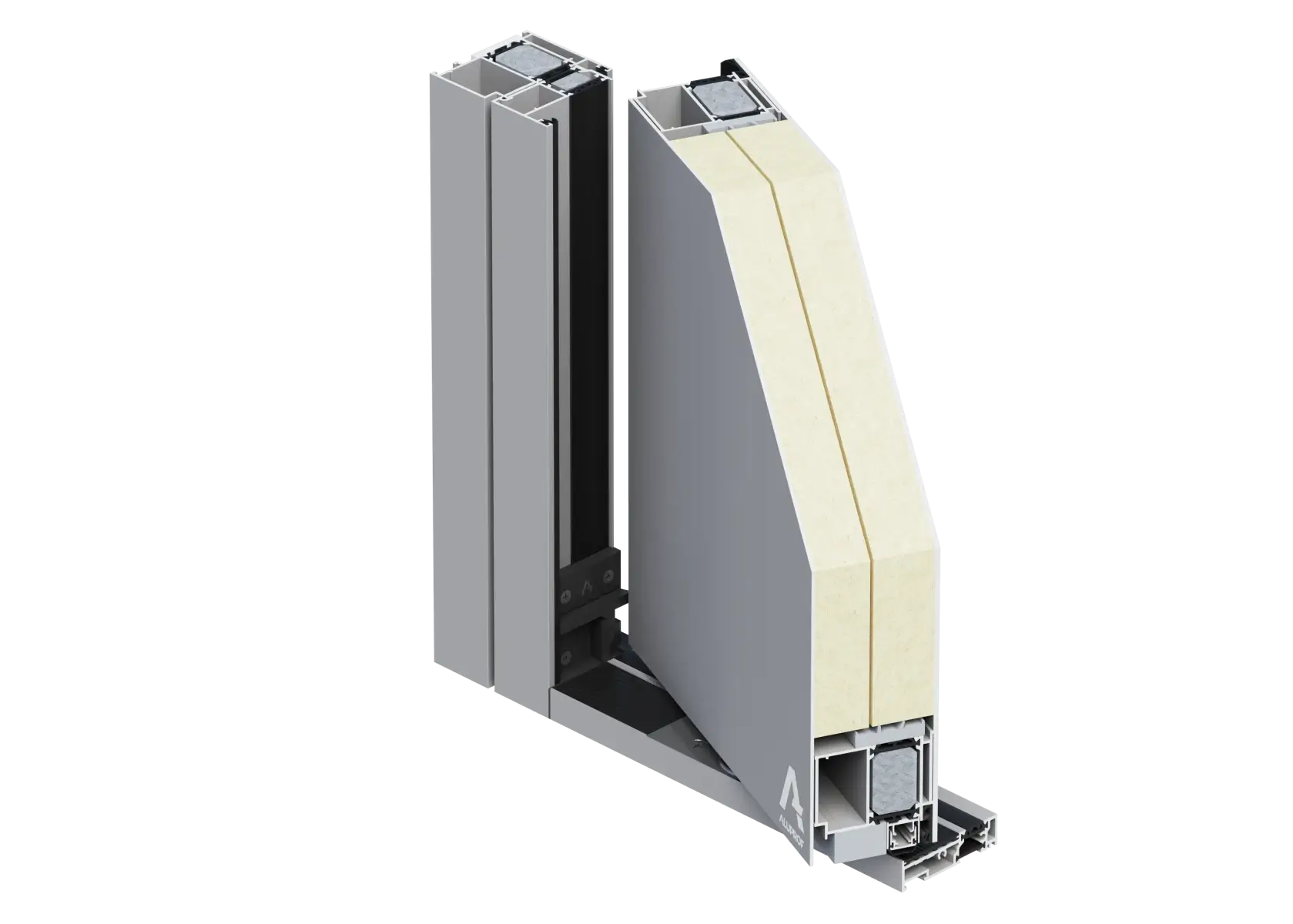

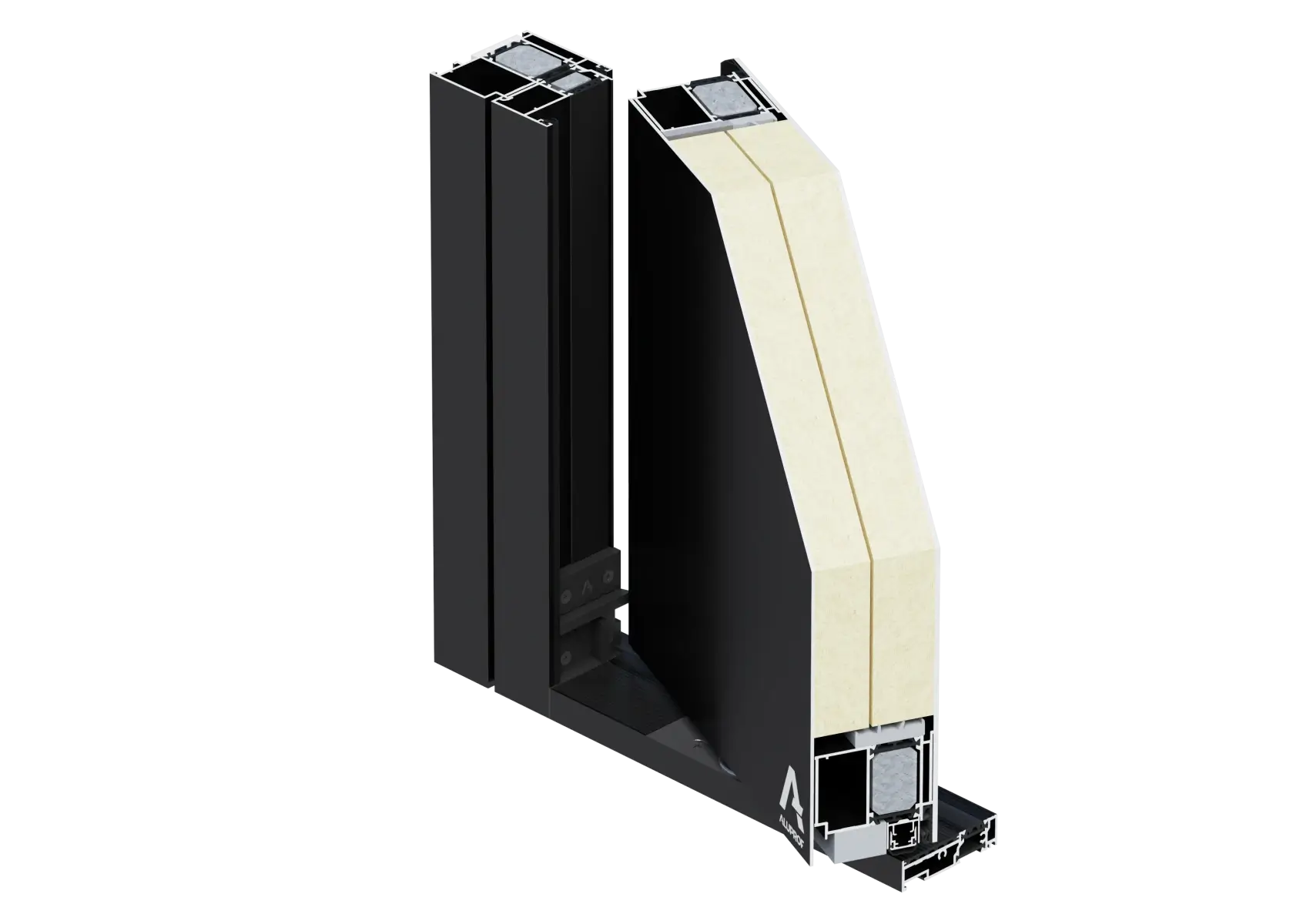

ALUPROF’s MB-86N Pivot Doors are a statement alternative to their classic profiled, sliding or bifold counterparts. The system can be used to create paneled and glazed doors featuring excellent thermal and acoustic performance, along with first-class air- and watertightness, making it possible to meet requirements for energy efficiency and environmental protection. Other unique aspects include a customized locking system offering one- or two-latch options. System features:
- large-scale leaves measuring up to 2 m wide and 3.4 m high
- off-center pivot
- leaves or glazed insulating units up to 60 mm thick
- concealed bearing hinges with a load capacity of up to 500 kg
- three thermal construction variants, the ST, the SI, and the SI+
- locked by means of alternating strips on the leaf and frame
- the bottom is sealed using a drop seal
- the low, 20 mm threshold can be fully built in, obtaining a ‘zero threshold’ effect with the possibility of draining water to the outside
- linear drainage can be installed
- quick and efficient leaf installation and uninstallation
- the solution is based on ALUPROF’s MB-86N system profiles
- the Pivot threshold can be used as a ‘zero threshold’ with the regular MB-86N system door solutions
