MB-78EI Seamless fireproof partition wall

Fire resistance classes

EI30, EI60 | EN 13501-2:2016-07

Our projects

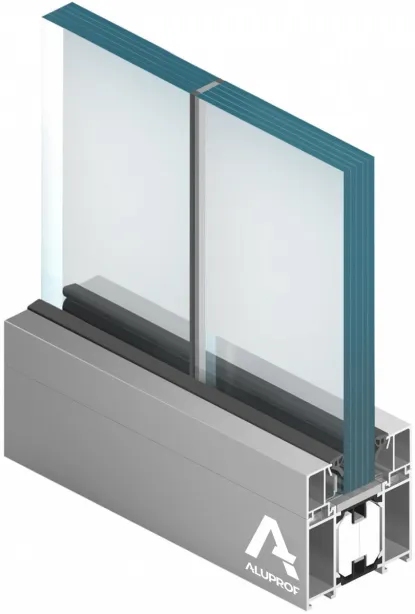

  • Aluprof offers the MB-78EI system-based transparent, fire-rated wall solution, the so-called muntin-free walls. It is a solution which makes it possible to build interior partitions with no visible, vertical profiles dividing the individual modules, while still maintaining full fire-resistance.

    The gap between the panes of glass, which measures just 4 millimetres, is filled with intumescent, fire-retardant material and fire-resistant silicone. Fire partitions produced in this way can reach a height of up to 3.6 metres and module widths of up to 1.8 metres. The fire tests carried out at the Building Research Institute (ITB) included a model with a free edge, meaning that there is no limit to the length of this type of partition.

    MB-78EI Muntin-free system brings you virtually unlimited design and construction possibilities of very large internal partition walling. Thanks to the transparent modules, all the constructions fabricated using this system make your interiors optically bigger. Our system also provides security by allowing the arrangement of the building’s fire zones, thus ensuring appropriate conditions for the evacuation of people.

    Advantages:

    • our solution has been designed and then tested at the ITB in two fire-rating classes: EI30 and EI60
    • joint width between the modules is only 4 mm
    • max wall height is 3,6m
    • max. width of a single module is 1,8 m
    • unlimited width of single walls,
    • constructions have been tested with tempered glass, that are much stronger and more resistant to impact than non-tempered glass.
