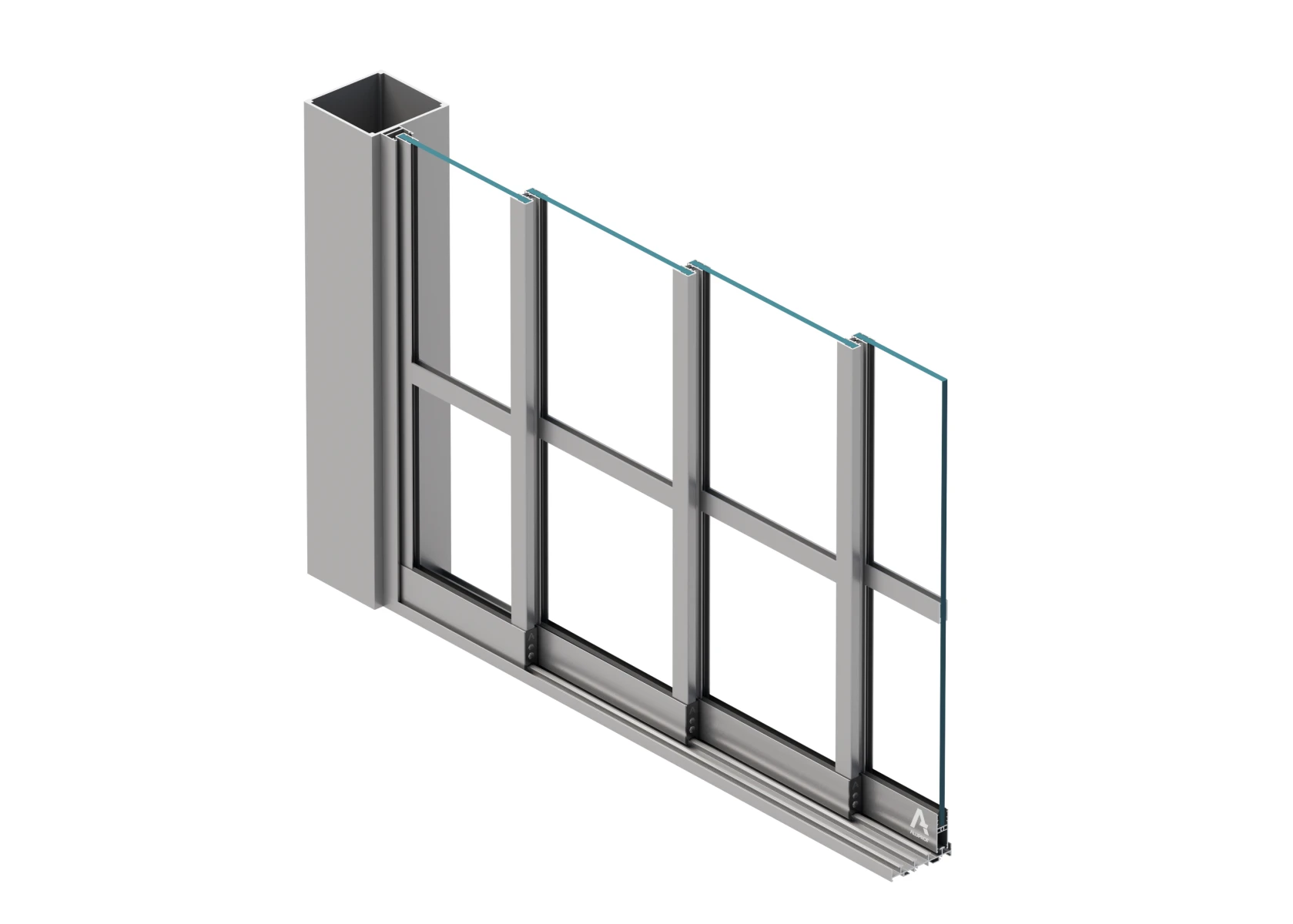

MB-OpenSlide An all-glass sliding development for pergolas, terraces and loggias

The MB-OpenSlide system has been designed for covering the walls of pergolas and other unheated facilities, such as loggias and balconies. Sliding glass segments are also perfect for interiors – they can be used in such spaces as dressing rooms. The main goal, which guided the Aluprof designers, was to create a solution for pergolas that would provide effective protection from the weather conditions. Thanks to the MB-OpenSlide system, you can use the pergola for more than just beautiful sunny days. Once the walls are closed with the glazed MB-OpenSlide segments and the roof is closed, the pergola can still be a functional space where everyone can remain comfortable.

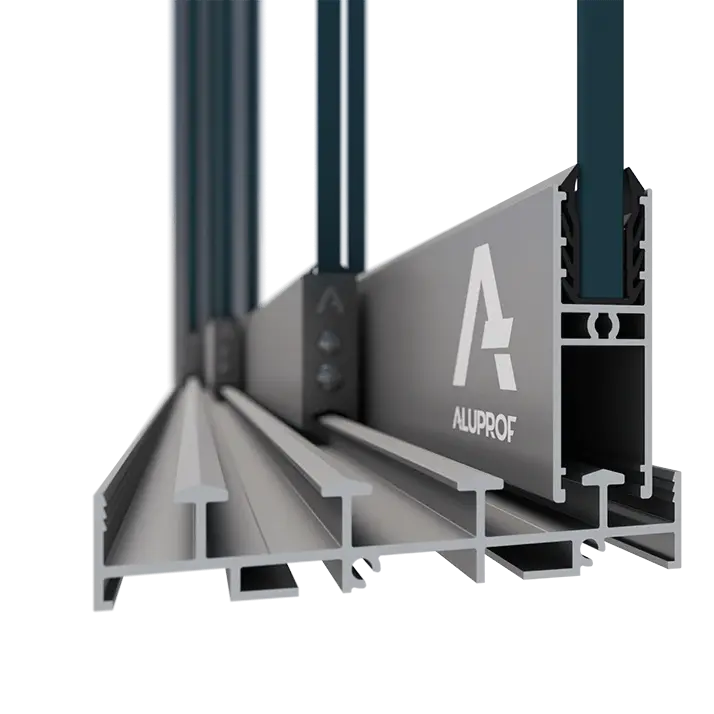

The system allows you to create an aesthetically pleasing and modern glass system, consisting of sliding sashes that can be, depending on their number and arrangement, slid to one side or symmetrically on both sides. A great advantage is the unique geometry of the rail that protects the sash from falling out, which guarantees its convenient and trouble-free use.

MB-OPENSLIDE SYSTEM FEATURES AND ADVANTAGES

• maximum sash size: 1200×2800 mm
• tempered glass with a thickness of 10 mm or 12 mm

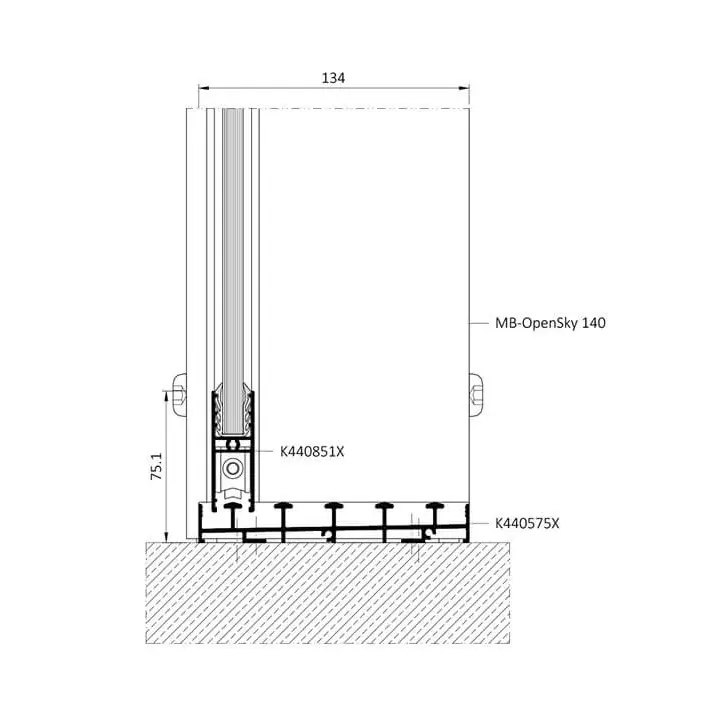

• bottom frame profiles with 3, 4 and 5 rails
• option of using 3 to 5 sashes that open to one side and slide behind each other, as well as similar arrangements with sashes opening in both directions
• option of using simple and convenient sash locking
• easy and fast assembly and prefabrication
• number of system components kept to a minimum
• no need for complex machining for a bottom rail drainage system
