Windows and doors MB-104 PASSIVE
Certificate

Windows and doors MB-104 PASSIVE Window & door system that provides the highest thermal insulation performance

Thermal insulation for the window being opened

UW from 0,53 | W/(m2K)

Wind tightness

class C5/B5 | PN-EN 12210:2001

Watertightness

class AE 1800 | PN-EN 12208:2001

Air tightness window

class 4 | PN-EN 12207:2001

Our projects

MB-104 Passive windows and doors – the perfect solution for passive houses

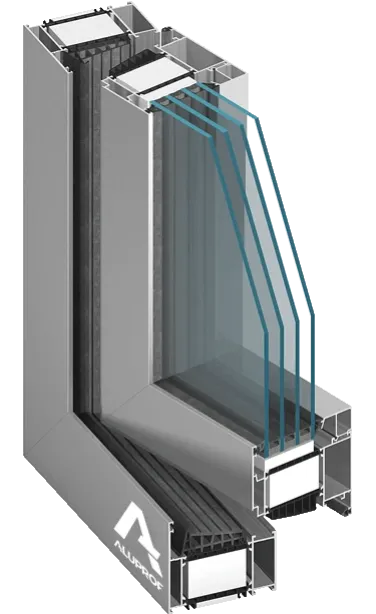

The special feature of MB-104 Passive windows and doors is the use of multi-chamber profiles with polyamide thermal breaks, which ensure that the technical specifications of the window or door can meet the stringent requirements for passive buildings, as confirmed by the certificate of the Passive House Institute in Darmstadt. The heat transfer coefficient Uw can reach values starting from 0.53 W/(m2K), which is a level unattainable by standard solutions.

The reduced heat loss through exterior doors and windows translates into lower heating and cooling costs, which is a great advantage for owners of single-family houses – particularly passive houses. The MB-104 Passive system not only provides excellent protection against the cold but also reduces exterior noise. Thanks to excellent insulating performance, you can enjoy peace and quiet even if you live in a busy neighbourhood.

Invest in security and top quality

User security is extremely important. MB-104 Passive windows and doors conform to very stringent burglary protection standards, meeting the requirements of classes RC2 and RC3, which ensures a high level of protection against unauthorised access. Robust hardware, locks and handles not only ensure appropriate insulation but also guarantee easy use and reliable operation. Additional mushroom striker plates successfully prevent potential intruders from trying to break in through the windows and doors.

MB-104 Passive combines exceptional technical specifications with modern design and a wide range of configuration options. Thanks to the large number of available colours and finishes, doors and windows can be easily matched with your individual preferences and the style of any building. Modern architecture, which emphasises simplicity and minimalism, will certainly regard MB-104 Passive windows and doors as the perfect choice for harmonious and aesthetically consistent solutions.

By choosing MB-104 Passive windows and doors, you invest not only in energy efficiency and security but also in aesthetic appearance and durability. It is a solution that will meet the expectations of even the most demanding users interested in products that respond to the challenges of the 21st century.

The MB-104 Passive is a thermal break-equipped window & door system that provides the highest thermal insulation performance, and meets all the requirements for passive building components.

The system is used to fabricate exterior architectural development elements, e.g. various types of windows, doors, vestibules, and spatial structures, which are characterized, in addition to the excellent thermal insulation, by a very good sound insulation, water- and air tightness and high structural strength.

The MB-104 Passive system's profile construction comes in two variants, depending on the requirements for thermal energy savings: SI and AERO

The MB-104 Passive -based door & window parameters exceed the current requirements of the strictest applicable regulations and standards – that’s why the MB-104 Passive system is dedicated to energy-efficient and passive building.

Why MB-104 Passive?

  • Passive House Institute Darmstadt-certified windows: MB-104 Passive SI and MB-104 Passive Aero
  • excellent thermal insulation performance for openable window: UW from 0,53 W/(m2K) and for door UD from 0,62 W/(m2K)
  • standard-exceeding tightness and insulation performance
  • large range of glazing, up to 81mm
  • exterior doors are available both glazed and panelled – it’s a perfect entrance door to a modern home

MB-104 Passive can also be used to fabricate highly aesthetic panel doors that meet the expectations of the most demanding users.

  • Aero Certificate PHI Darmstadt MB-104 PASSIVE SI - window
  • Brochure MB-104 PASSIVE
  • Certificate PHI Darmstadt MB-104 PASSIVE Aero - window
  • Aero Certificate PHI Darmstadt MB-104 PASSIVE SI - door
  • Product card
