Aluminium windows
Modern, comprehensive solutions
Filter products
FUNCTIONS
THERMAL INSULATION
APPEARANCE
MB-79N Thermally insulated window & door system
- Thermal insulation of profilesUf > 0,83 | W/(m2K)
- Watertightness of windowsE 1950
- Air permeabilityclass 4 | EN 12207:2001
MB-79N WW Window Wall System
- Air Infiltrationup to 6.24 psf (49 mph)
- Water Penetrationup to 12 psf
- Dynamic Water Resistanceup to 12 psf

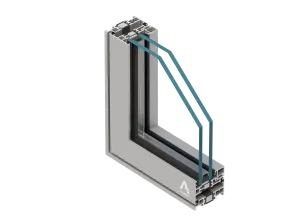

MB-79N CSF Casement Slim-Profile Window
- Minimum width of fixed window profiles35,2 mm
- Minimum width of operable window profiles60,5 mm
- Maximum casement weight80 kg
MB-79N CASEMENT Outward-opening window
- Air tightnessclass 4
- Watertightnessclass E 1800
- Thermal insulationUw od 0,74 W/(m²K)
- Wind tightnessclass C5/B5
MB-86N Thermally insulated window and door system
- Thermal performance: profilesUw from 0.62 | W(m2K)
- Air permeability: windowsclass 4 | PN-EN 12207
- Watertightness: windowsclass E 4800 Pa | PN-EN 12208
- Wind load resistance: windowsclass C5 | PN-EN 12210
Smoke exhaust windows and flaps - Maximum window sash dimensions (horizontal configuration)W up to 2500 mm, H up to 1600 mm
- Maximum window sash dimensions (vertical configuration)W up to 1600 mm, H up to 2500 mm
- Maximum roof window sash dimensionsW up to 1500 mm, H up to 2200 mm
MB-INSTALLATION SOLUTION - Thermal conductivity coefficient of EPS polystyreneλ = 0.032 W/(m²K)
- Width of thermal installation beams100 or 200 mm100 lub 200 mm

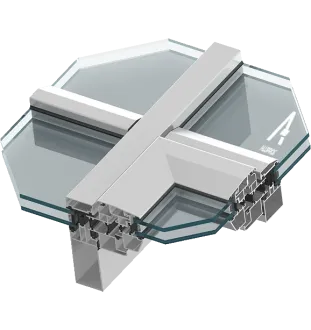

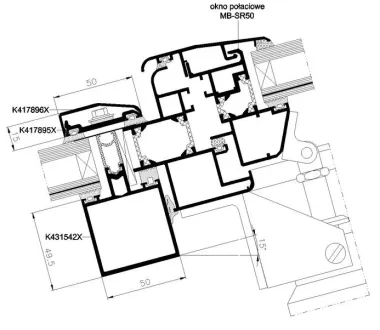

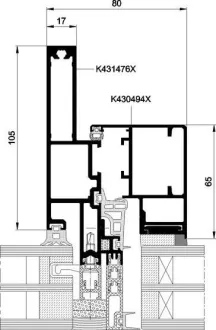

MB-SR50N RW Skylight window
- Air tightnessclass 4 | EN 12207
- WatertightnessE 1800 | EN 12208
- Impact resistanceclass 4 | EN 1873
- Thermal insulation Uf>1,8 | W/(m2K)

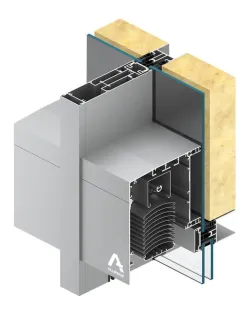

MB-SR50N ZS Mullion and transom curtain wall system integrated with SkyFlow venetian blinds
- Air permeabilityclass AE1200 | Pa
- Watertightnessclass RE1200 | Pa
- Wind load resistance2,4 | kN/m2

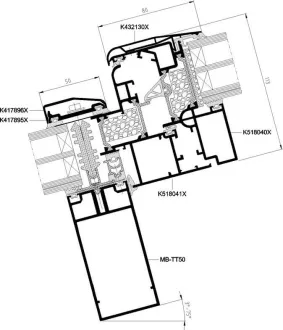

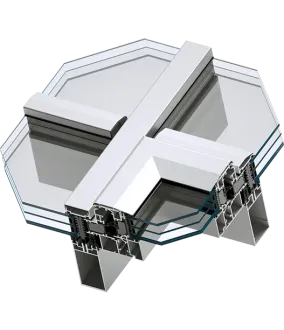

MB-RW Roof window system
- Air tightnessclass 4 (1300 Pa) | EN 12207
- WatertightnessE 1800 | EN 12208
- Impact resistanceclass 4 | EN 1873
- Thermal insulation Uf>1,8 | W/(m2K)
MB-SLIMLINE Window system with slim profiles
- Air tightnessclass 4
- Watertightnessclass E 1500
- Thermal insulation UW> 0,8 | W/(m2K)
MB-104 PASSIVE Window & door system that provides the highest thermal insulation performance
- Thermal insulation for the window being openedUW from 0,53 | W/(m2K)
- Wind tightnessclass C5/B5 | PN-EN 12210:2001
- Watertightnessclass AE 1800 | PN-EN 12208:2001
- Air tightness windowclass 4 | PN-EN 12207:2001
MB-86US ST, SI The invisible window sash
- Air tightnessclass 4 | PN-EN 12207:2001
- Watertightnessclass E1350 | PN-EN 12208:2001
- Wind tightnessclass C5/B5 | PN-EN 12210:2001
MB-45 Door and window system without a thermal barrier
- Max dimensions of the door leaf (H × L)H up to 2400 mm; L to 1250 mm
- Max weight of the sash (door / window)120-130 kg
MB-86 Casement Outward-opening windows
- Air tightnessclass 4
- Watertightnessclass E 1950
- Wind tightnessclass C5
MB-FERROLINE System with slim profile
- Air tightnessclass 4 | PN-EN 12207
- Watertightnessclass E1350 | EN 12208
- Wind tightnessclass C5 | EN 12210
- Anti-burglary classRC2
MB-70 Window-door system with a thermal barrier
- Thermal insulation Uf> 1,5 | W/(m2K)
- Air tightness windowclass 4
- Watertightnessclass E1200
- Wind tightnessclass C5

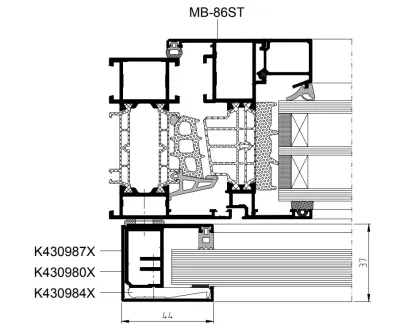

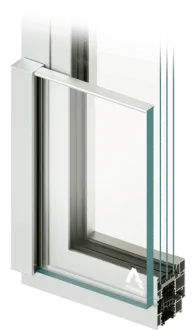

MB-GLASS BARRIER External juliet balcony
- Glass thicknessfrom 8.8 to 20.8 mm
- Maximum glass width2600 mm
- Maximum glass height1200 mm
