Modern building elevations

Façade systems are an increasingly popular choice in modern construction. They not only give the building an aesthetic appearance, but also very good levels of thermal, acoustic and wind insulation. Aluminium façades are also durable, weatherproof and easy to maintain. What’s more, they can be created in non-standard shapes and forms, resulting in the most creative architectural designs. If you are looking for modern and functional solutions, we recommend looking at Aluprof’s portfolio – we are the leader in the production of aluminium façade systems.


Façade system matching the architectural style

We offer a wide range of façade systems to meet all expectations in terms of quality, aesthetics and safety. It is the perfect solution not only for apartment complexes and other public buildings, but also for the increasingly fancy designs of modern barn-style houses.

Aluprof aluminium and glass façades provide plenty of natural light and a striking appearance for the building. Depending on your needs, you can choose different types of glass, such as insulated glass, laminated glass, reflective glass or burglar-proof glass. Examples of aluminium and glass façade systems are: MB-SR50N HI+, MB-SR50N EFEKT, MB-SR50N OW and MB-SR50N SG.

Glass façades are systems that consist of a self-supporting glass structure fixed to the building with special point or line fasteners. A glass façade is distinguished from other solutions by giving the impression of lightness and providing the maximum amount of natural light. It is ideal for office, retail and residential buildings, increasing the attractiveness and value of the property. The flagship products in the series are the MB-SG50 and MB-SG50 SEMI.

Ventilated façade systems are worthy of consideration from among the available solutions. They consist of three layers: insulating, load-bearing and façade. They provide excellent noise and thermal insulation for the building, as well as protection against dampness and mould. Ventilated façades are also aesthetically pleasing as well as durable and offer a wide range of possibilities in terms of the choice of façade material, e.g. HPL, composite panels, ceramic or wood. Selected Aluprof systems include: EXTRABOND, EXTRABOND FR, and EXTRABOND A2.

Aluprof aluminium façades – where functionality meets aesthetics

Each Aluprof aluminium façade system has its own unique parameters and features that make it suitable for different applications and requirements.

The MB-TT50 façade is distinguished by the highest degree of thermal insulation and meets the requirements of passive and energy-efficient construction (it has a certificate issued by the PHI Institute in Darmstadt in the highest A+ class). This feature reduces the costs associated with heating or cooling.

The MB-SR50N façade forms the basis for fireproof roof constructions and is well suited to the use of awning-parallel opening windows, roof windows and skylights. It is features enhanced durability, including being waterproof as well as resistant to wind and impact loads.

Passive buildings can use the energy-efficient MB-SR50N HI+ high-insulation façade, which has passed the Cradle to Cradle bronze certification and is also certified by PHI Darmstadt in the highest A+ class.

The MB-MT50N façade is a structure designed based on Cradle to Cradle certification guidelines. It therefore corresponds to the requirements of sustainability and the idea of a circular economy. The mullion and transom system is distinguished by its excellent technical performance, very low thermal permeability and can be used in unusual and complex constructions, guaranteeing adequate ventilation and drainage.

A ventilated building façade such as MB-VC60 works well in buildings of unusual height and shape, including historic and modernist buildings. Component systems, such as MB-SE98, make it possible to create polygonal and rounded building façades and to use different types of opening windows.

What should you look for when choosing a building façade?

When choosing a façade system, there are several aspects to consider.

  • The cost of building and operating the façade – it is worth opting for a solution that fits the investor’s budget and ensures optimal energy and acoustic performance of the building.

  • Aesthetics and visual effect – the façade is an identifying feature of the building, so it should fit in with its architectural style and surroundings. Thanks to our wide range, our available solutions fit in perfectly with any design concept.

*Technical and functional parameters – the aluminium façade should meet the requirements for thermal, acoustic, wind and fire insulation, and provide adequate ventilation. Solutions from Aluprof are the answer to these challenges!

  • Possibility of assembly and disassembly – the façade should also be easy to install to allow for possible repairs or upgrades. Our products are designed with such flexibility in mind, allowing for easy cleaning and maintenance of the components.

Aluprof façade system – the answer to the challenges of modern construction

Aluprof offers a wide range of solutions to meet any architectural challenge, allowing you to create a modern, functional and aesthetically pleasing façade. Aluminium, glass and other high-end materials are extremely important elements of our products. As a result, the façade systems maintain their perfect form for many years without losing their properties. It is the best choice for commercial, residential and public buildings. Take a look at our full range of advanced façade solutions now! Should you have any questions or concerns, our experts are here to help you find the best solutions tailored to your individual needs.

MB-MT50N
MB-MT50N
Mullion-transom curtain wall
  • Airtightness
    AE 1950 Pa
  • Watertightness
    RE 1950 Pa
  • Wind load resistance
    3000 Pa
  • Thermal insulation
    Uf from 0,55 W/(m2K)
  • Passive
  • Standard
  • Mullion and transom façades
  • Roof solutions
  • New
MB-SR50N PV
MB-SR50N PV
Façade integrated with a photovoltaic system
  • Air permeability
    AE 1200 Pa
  • Watertightness
    RE 1200 Pa
  • Wind load resistance
    2400 Pa
  • Thermal insulation
    Uf od 1,13 W/(m2K)
  • Façades
  • With thermal insulation
MB-SE65
MB-SE65
Unitised Curtain Wall
  • Air permeability
    AE 1200 Pa
  • Watertightness
    RE 1200 Pa
  • Wind load resistance
    ±2000 Pa
  • Thermal insulation
    UCW < 0,9 W/(m²K)
  • With thermal insulation
  • Unitised façades

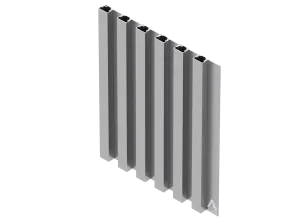

EARTHLINE
EARTHLINE
Decorative Profiles
  • Width of profiles in the vertical configuration
    30 mm or 90 mm
  • Width of profiles in the horizontal configuration
    45 mm
  • Depth of profiles
    19.5 mm or 40.5 mm
  • Supplementary products
MB-MM50N
MB-MM50N
HIGH THERMAL PERFORMANCE MULLION AND TRANSOM WALL
  • Airtightness
    AE 1200 | Pa
  • Watertightness
    RE 1200 | Pa
  • Wind load resistance
    2400 | Pa
  • Thermal performance
    Uf > 0,62 | W/(m2K)
  • With thermal insulation
  • Standard
  • Mullion and transom façades
MB-SR50N ZS
MB-SR50N ZS
Façade system compatible with SkyRoll screens
  • Air permeability
    class AE1200 | Pa
  • Waterproof
    class RE1200 | Pa
  • Wind load resistance
    2400 | Pa
  • Supplementary products
MB-WG60
MB-WG60
Winter garden system
  • Supplementary products
  • With thermal insulation
  • Roof solutions
MB-SR50N A
MB-SR50N A
Overlapping system for wood and steel
  • glazing with translucent units thickness
    24-64 | mm
  • max. weight of the infill
    up to 600 | kg
  • thermal insulation
    Uf from 0,72 | W/(m2K)
  • With thermal insulation
  • Standard
  • Mullion and transom façades
  • Roof solutions
MB-SR60N, MB-SR60N HI
MB-SR60N, MB-SR60N HI
Mullion-transom curtain wall
  • Air permeability
    up to AE 1350 | EN 12152
  • Watertightness
    up to RE 1500 | EN 12154
  • Resistance to wind load
    2.4 kN/m | EN 13116
  • Impact resistance
    I5/E5 | EN 14019
  • Acoustic
  • Mullion and transom façades
  • Semi-structural (the EFEKT system)
  • Roof solutions
  • Standard
  • With thermal insulation
  • AVAILABLE UNTIL 12.2025
MB-TT50
MB-TT50
Mullion-transom curtain wall
  • Thermal insulation
    Uf from 0,5 | W/(m2K)
  • Air tightness
    class AE 1350 Pa | EN 12153:2004;
    EN 12152:2004
  • Watertightness
    class RE 1800 Pa | EN 12155:2004;
    EN 12154:2004
  • Wind tightness
    2700 Pa | EN 12179:2004,
    EN 13116:2004
  • With thermal insulation
  • Acoustic
  • Roof solutions
  • Mullion and transom façades
  • Standard
MB-SUNPROF
MB-SUNPROF
Facade louvre system
  • Louvre tilt angle
    from 0 to 45°
  • Louvre profile width
    from 100 to 300 mm
  • Supplementary products
MB-SR50N
MB-SR50N
Mullion-transom curtain wall
  • Thermal insulation Uf
    >0,6 | W/(m2K)
  • Air tightness
    AE 1200
  • Watertightness
    RE 1200 | EN 12154
  • Impact resistance
    I5/E5 | EN 14019
  • Acoustic
  • Mullion and transom façades
  • Roof solutions
  • Standard
  • With thermal insulation
MB-SR50N HI+
MB-SR50N HI+
A mullion-transom wall with high thermal insulation
  • Air tightness
    AE 1200 Pa
  • Watertightness
    RE 1200 Pa | EN 12154
  • Impact resistance
    I5/E5 | EN 14019
  • Thermal insulation
    Uf from 0,59 | W/(m2K)
  • Passive
  • Standard
  • Mullion and transom façades
  • Roof solutions
MB-SR50N HI
MB-SR50N HI
Mullion-transom curtain wall with enhanced thermal insulation
  • Air tightness
    AE 1200
  • Watertightness
    RE 1500 | EN 12154
  • Impact resistance
    I5/E5 | EN 14019
  • Thermal insulation Uf
    >0,85 | W/(m2K)
  • With thermal insulation
  • Acoustic
  • Roof solutions
  • Mullion and transom façades
  • Burglar resistance
  • Standard
MB-SR50N EFEKT
MB-SR50N EFEKT
Semistructural mullion/transom curtain wall
  • Air tightness
    AE 1200 Pa
  • Watertightness
    RE 1200 Pa | EN 12154
  • Impact resistance
    I5/E5 | EN 14019
  • Wind tightness
    up to 2400 Pa
  • With thermal insulation
  • Acoustic
  • Roof solutions
  • Semi-structural (the EFEKT system)
  • Mullion and transom façades
  • Burglar resistance
MB-SR50N EI, MB-SR50N EI EFEKT
MB-SR50N EI, MB-SR50N EI EFEKT
Fire-rated mullion and transom curtain wall
  • Air tightness
    class AE 1050 Pa | PN-EN 12152
  • Watertightness
    class RE1200 | PN-EN 12154
  • Thermal insulation Uf
    >1,8 | W/(m2K)
  • Fire resistance classes
    EI30 and EI60 | EN 13501-2
  • With thermal insulation
  • Standard
  • Mullion and transom façades
  • Semi-structural (the EFEKT system)
MB-SR50N PL
MB-SR50N PL
“horizontal line”
  • Air tightness
    class AE | PN-EN 12152
  • Watertightness
    RE 1200 | EN 12154
  • Wind tightness
    2,4 | kN/m2
  • Impact resistance
    class I5 / E5
  • With thermal insulation
  • Roof solutions
  • Mullion and transom façades
  • Burglar resistance
  • Standard
